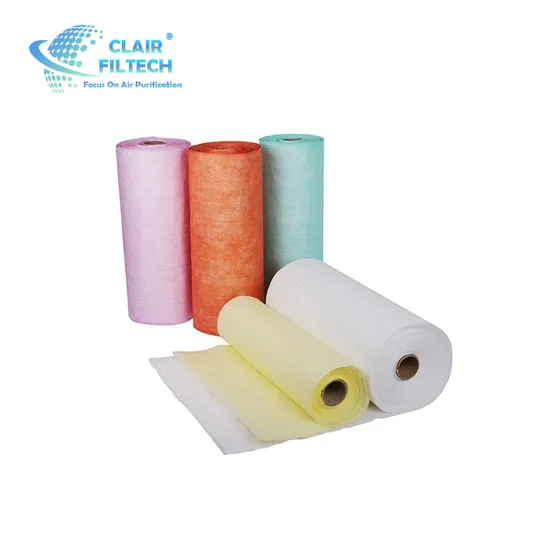

Medium Efficiency Pocket Type Air Filter Media

Product Description

Product Description
Application
It is mainly used as raw materials for bag filters and plate filters in the general ventilation system

Features
Materials: polypropylene (PP) and polyester fiber (PET);
Multi-layer non-woven fabric composite, three-dimensional network structure, to meet the layered filtration;
High dust capacity and long service life;
Low initial resistance and high efficiency;
The material is non-toxic, tasteless, environmentally friendly, and completely disposable;
Product Parameters
Specification Standard type

Test standard	Model	Filtration Class	EFF.	Weight (g/m2)	Thickness	I.N.P (Pa)	Dust capacity (g/m2)	Length (m)	Color
EN779:2012	SFS05	M5	45	170±3	6±1	6±2	180±10	150	White
	SFS06	M6	65	195±3	6.5±1	10±2	190±10	150	Green
	SFS07	F7	85	205±3	6.5±1	15±2	210±10	150	Pink
	SFS08	F8	90	220±3	6.5±1	22±2	220±10	150	Yellow
	SFS09	F9	95	235±3	6.5±1	28±2	230±10	150	White

Economical type

est standard	Model	Filtration Class	EFF.	Weight (g/m2)	Thickness	I.N.P (Pa)	Dust capacity (g/m2)	Length (m)	Color
EN779:2012	SFE05	M5	45	125±3	5±1	5±2	160±10	150	White
	SFE06	M6	65	140±3	5.5±1	9±2	170±10	150	Green
	SFE07	F7	85	170±3	6±1	14±2	190±10	150	Pink
	SFE08	F8	90	200±3	6.5±1	18±2	200±10	150	Yellow
	SFE09	F9	95	220±3	6.5±1	22±2	210±10	150	White

Thickened type

Test standard	Model	Filtration Class	EFF.	Weight (g/m²)	Thickness	I.N.P (Pa)	Dust capacity (g/m²)	Length (m)	Color
EN779:2012	SFT05	M5	45	165±3	8±1	7±2	200±10	150	White
	SFT06	M6	65	190±3	8.5±1	11±2	210±10	150	Green
	SFT07	F7	85	200±3	8.5±1	16±2	230±10	150	Pink
	SFT08	F8	90	215±3	8.5±1	23±2	240±10	150	Yellow
	SFT09	F9	95	225±3	8.5±1	29±2	250±10	150	White

High standard type

Test standard	Model	Filtration Class	EFF.			Weight (g/m²)	Thickness	I.N.P (Pa)	Dust capacity (g/m²)	Length (m)	Color
			ePM1	ePM2.5	ePM10
EN ISO16890:2016	SFH05	M5	-	-	55±5	200±3	6.5±1	8±2	190±10	150	White
	SFH06	M6	-	55±5	75±5	220±3	7±1	15±2	200±10	150	Green
	SFH07	F7	60±5	75±5	-	235±3	7±1	20±2	220±10	150	Pink
	SFH08	F8	75±5	-	-	250±3	7±1	26±2	230±10	150	Yellow
	SFH09	F9	85±5	-	-	260±3	7±1	33±2	240±10	150	White

Packaging & Shipping
Company Profile
Guangzhou Clair Filtech Co., Ltd. is one of the best international enterprises which are specialized in the products of filtration and purification in China.
With advanced technique and continuously innovative and powerful science and technique research, our products have been sold to various countries in the world such as Japan, Korea, Australia, the United States and Southeast Asia.
Our main products are as follows: Coarse Filter Cotton, Ceiling Filters, Floor Filter, Heat Resistant Air Filters, all kinds of Pockets, Plank, Foldaway Filters, Primary Filter, Secondary Filters, HEPA Filters, Activated Carbon Filters, and all different kinds of clean products and equipment used in the cleaning cabin and ventilation system of HVAC (heating & ventilation application).
Based on the managing tenet of "quality first and sincere service", we have got the trust from our large quantities of customers.
Our company is located in Baiyun District of Guangzhou City, we welcome new and old clients and friends to come to our company.
Our Advantages Certifications
FAQ Q1: Are you the factory?
We have many cooperating factories here, with competitive price.

Q2:Can you send Free Sample?
Yes.We can offer you Free Samples and you just need to pay express charge. You also can provide your Express Account or asking your courier to pick up from our factory.
Q3:What's your MOQ ?
A:Different standard of MOQ for different goods.

Q4:Can the dimension be customized?
Yes, the dimension can be customized.

Q5. What is the payment terms.
The payment terms is 30%-50% as deposit, balance be paid before shipment.

Q6. What payments can be accepted?
T/T
Q7. What are your minimum order?or Can we have one sample order or small order to try?
Normally, 500sets/item,less quantity is available but cost is higher if you can accept. We warmly welcome any trial order.
Q8. Can we have our logo to be printed on the units or packaging?
Yes!OEM print is available.
Q9. How many days can I get the product if we placed purchase order?/What is the lead time?
In general,3-7 working days for Sample and Ready Stock;30-40 days for production order after receiving order deposit.
Q10. Do you offer discounts for bulk orders?
Yes, There have breakdown price for breakdown quantity, email us to speak to a representative.

Q11. Could you arrange the shipment?
Sure, we have the shipping agents, we could arrange the shipping by SEA, by AIR, as customer requests.

---
