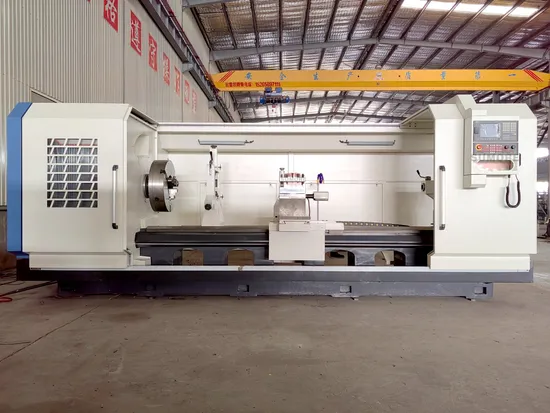

3000mm Torno CNC Turning Machine Siemens Ck61100 Heavy Duty Metal Processing Horizontal Flat Bed CNC Lathe for Sale

Product Description

Product Description
CK61100 Large Torno Cnc Turning Machine GSK/FANUC/SIEMENS Flat Bed Cnc Lathe For Sale
(Hi friend, our CNC lathes can be from small to big size different enclosure and design, the web pages may be too limited, so please contact us for more details)
-----------------------
Quick DetailsMain specification of cnc lathe machine:Processing material: aluminum, copper, metal etc.Workpiece length: 3000mmSwing over bed: 1000mmSpindle bore: 105mmControl System: GSK, SIEMENS, FANUC or customized

Product Parameters

Item	Unit	CK61100×3000
NC system		GSK980TDI,GSK980TC3,FANUC Oi Mate Td,FANUC Oi Td,SIMENS 808D,KNDK1000Ti,GSK980TDC Available
Maximum workpiece length	mm	3000
Maximum turning length	mm	2850
Max dia.swing over bed	mm	φ1000
Max dia.swing over cross slide	mm	φ680
Width of bed	mm	600
Chuck (manual)	mm	K11-400
Spindle taper hole		C11
Spindle bore	mm	105
Range of spindle speed	r/min	10-700
Mode of spindle speed		Three gears,smooth adjustment
Center distance of Bed	mm	500
Center distance of Ground	mm	1230
X axis rapid traverse	m/min	4
Z axis rapid traverse	m/min	6
X axis travel	mm	550
Z axis travel	mm	2850
Min.Feeding set unit of X axis	mm	0.001
Min.Feeding set unit of Z axis	mm	0.001
X/Z Positioning accuracy	mm	0.03/0.045
X/Z Repositioning accuracy	mm	0.012/0.02
X-axis motor Speed	r/min	2000
X-axis motor Torgue	N.m	16
X-axis motor Power		2.6
Z-axis motor Speed	r/min	2000
Z-axis motor Torgue	N.m	20
Z-axis motor Power	KW	3.1
Spindle motor Model		Y-6 15KW
Spindle motor Speed	r/min	1000
Spindle motor Torgue/Power	N.m/KW	15
Tool-post form		Vertical four-station
Standard tool-post Model		HAK21280
Electric tool-post Motor torque	W	5
Electric tool-post Dimension	mm	280X280
Electric tool-post Maximum tangential torque	N.M	1250
Electric tool-post Turret indexing time		3.9s/90°
Tailstock quill diameter	mm	120
Tailstock quill travel	mm	250
Tailstock quill taper		Morse NO.6
Blade size Outer circle	mm	32X32
Blade size Inner orifice	mm	32
Handheld pulse generator Model		ZY1469 (Wuxi)
Lubrication pump Pressure	MP	2.5
Lubrication pump Flow rate	L/min	6
Lubrication pump motor Power	W	500
Lubrication pump motor Power Voltage	V	220
Lubrication method for guide rails and screws		RCP-I-I-II 4PP centralized lubrication
Cooling pump Power	W	125
Cooling pump Voltage	V	380
Overall dimensions(L*W*H)	mm	4500x2300x2300
Machine weight	T	9

Detailed Photos
High performance lathe machining CK61100 series CNC lathe is an economical CNC machining lathe that can perform rough and precision machining of mechanical parts. The control system has comprehensive functions and can meet the needs of many industries.Especially suitable for industries such as automobiles, and machinery, it is used for efficient, large-scale, and high-precision processing of rotating parts. Simple and reliable structure, convenient operation, economical and practical.

Cnc Control System
Standard: GSK Optional: SIEMENS, FANUC, MITSUBISHI, And Other Domestic and Foreign Operating Systems Are Available.
Chuck
Standard: Manual Three Jaw Chuck
Optional: Hydraulic Three Jaw, Four Jaw Chuck; Workpiece Clamping Fastening; High Rigidity Cast Iron, Long Service Life.
Tool Post
Standard: 4 Station Electric Tool Post.
Optional: 6/8 Station Electric Tool Post.
Tailstock
Standard: Configuration Manual Tail Rack.
Optional: Hydraulic or Pneumatic Tail Rack.
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE,ISO certificate . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
