| US$1,800.00 | 1 Piece (MOQ) |
| Unit model:LT-W30GF | Steady state voltage adjustment(%):≤±1 | ||
| Rated power:30KW | Voltage fluctuation rate (%):≤±0.5 | ||
| Rated power factor:COSΦ=0.8 | Transient voltage adjustment rate (%):+20~-15 | ||
| Rated output voltage:220V/380V | Load abrupt voltage stability time (s):≤2 | ||
| Rated current:130A/54A | Steady state frequency adjustment rate (%):≤±1 | ||
| Rated frequency:50Hz | Frequency wave rate (%):≤±2 | ||
| Rated speed:1500rpm | Transient frequency adjustment rate (%):+10~-7 | ||
| Start mode:Electric | Load mutation frequency stabilization time (S):≤3 | ||

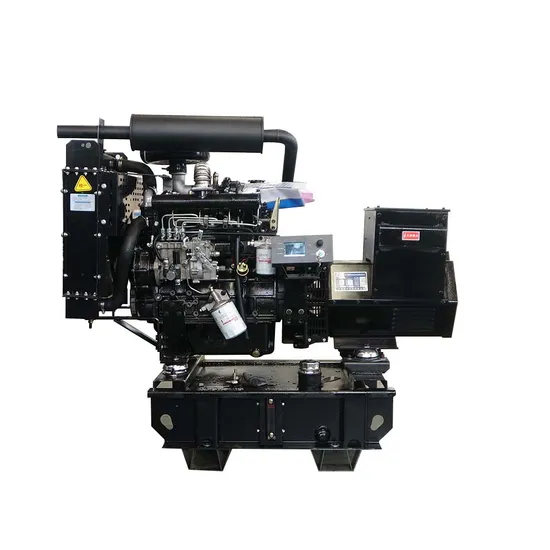

| 30KW diesel generator configuration | |||
Diesel engine | Brand | LEITENG | |
| Model | ZH490ZD | ||
| Rated power | 30KW | ||
| Cylinders | 4 | ||
| Bore * stroke(mm) | 90*105mm | ||
| Type | Straight line, Water cooled,Four stroke | ||
| Intake mode | Turbocharged with intercooled | ||
| Combustion mode | Direct injection combustor | ||
| Displacement(L) | 3.61L | ||
| Fuel consumption rate (g/kw.h) | ≤230g/kw.h | ||
| Type of Governor | electronic speed control | ||
| Rated Speed(rpm) | 1500 | ||
Alternator | Model | WUXIWEINENG | |
| Rated power | 30KW | ||
| Rated current | 130A/54A | ||
| Rated voltage | 220V/380V | ||
| Frequency | 50HZ | ||
| Speed | 1500rpm | ||
| Power factor | 0.8 | ||
| Phase number | Three phase four wire | ||
| Protection grade | IP23 | ||
| Controller Systerm | 1. The control panel displays the following data: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine running time. 2. The control panel has indicator light fault information: Over speed/low speed; Emergency stop with low oil pressure; High water temperature; Start failed; Battery charger malfunction. 3. The machine will automatically shut down if the following situations occur: Low engine oil pressure; High engine water temperature; Over speed/low speed. | ||
