CNC 2D Steel Bar Stirrup Bending Machine

Product Description

Product Description

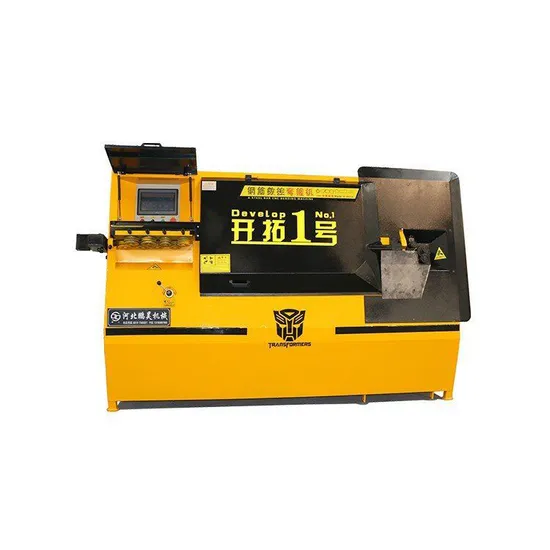

CNC 2D steel bar stirrup bending machine
What is a CNC steel bar hoop bending machine?
With the development of infrastructure, steel bars are widely used in different industries, so the production efficiency and performance of steel bar processing equipment are very important. Stirrups are indispensable steel bar components in the beams and columns of buildings. They and the main bars together form the skeleton of beams and columns, and then form a reinforced concrete structure. CNC steel bar hoop bending machine is an important steel bar processing machine.
It is a PLC computer numerical control fully automatic hoop bending machine with fully intelligent high integrated control, which realizes the integration of multiple processes from feeding, descaling, straight stretching, bending and forming to cutting. It can directly produce stirrups of multiple sizes and specifications, fully meeting the design requirements.
The fully automated steel bar hoop bending machine production equipment adopts intelligent control and can process squares, rectangles, diamonds, polygons, etc. of various sizes. It also has a correction function and can be used for multiple purposes. Product Parameters Machine Technical Parameter

SINGLE WIRE BENDING (MM)	4-10 ROUND BAR	4-8 REBAR
DOUBLE WIRE BENDING (MM)	4-8 ROUND BAR	4-6 REBAR
MAX BENDING ANGLE (°)	180
MAX TRACTION SPEED(M/MIN)	75
MAX BENDING SPEED (°/S)	800
ANGLE PRECISION(°)	±1
CUT LENGTH PRECISION(MM)	±1
AVERAGE POWER(KW/H)	4.5
TOTAL POWER(KW)	15(not include compressor)
DIMENSION(MM)(L*W*H)	2600*880*1700
WEIGHT(KG)	1150
PRODUCTIVITY(DOUBLE WIRE)(PCS/H)	1800-2200(FOR EXAMPLE 200*200MM SQUARE)
CERTIFICATION	CE/ISO9001:2008
