China Prices Truemax Concrete Machinery/Concrete Batching Plant (HZS60) /Concrete Mixing Plant

Product Description

Product Description

Features
Hzs series batching plant

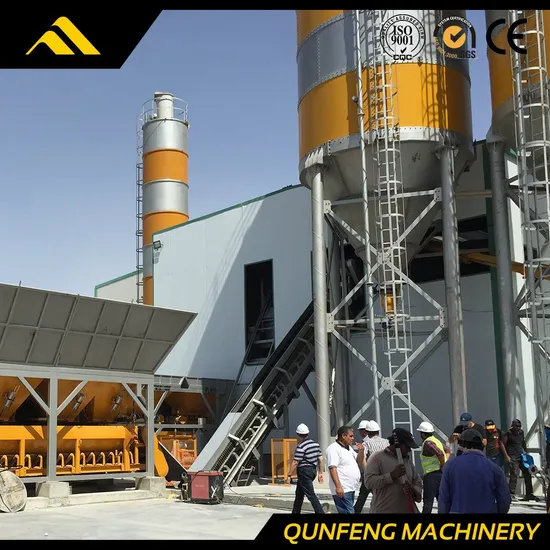

The concrete mixing plant is a combinational device used to mix concrete in centralized. There are many different types and components of the concrete mixing plants, the basic structure includes: Feeding system, measuring (weighing) system, mixing system, electrical system and auxiliary equipments (such as air compressor, water pump etc. ). They are used to transport, feed, store, batch, weigh, mix and discharge the concrete raw materials: Cement, water, sand, crushed stone, admixture and additive.
Technical data

Model		HZS60	HZS90	HZS120	HZS180	HZS200
Productivity (m3/h)		50	75	100	150	200
Mixer	Type	JS1000	JS1500	JS2000	JS3000	JS4000
	Power(kW)	2×22	2×30	2×37	2×55	2×75
	Exceeding Capacity (m³ )	1	1.5	2	3	4
	Grain Size (mm)	≤60	≤80	≤80	≤80	≤80
Batcher	Hopper Capacity (m³)	12	15	20	30	40
	Hopper Quantity	3	4	4	4	4
Conveyor Capacity (t/h)		400	400	500	600	600
Weighing Scope Accuracy	Aggregate (kg)	2500±2%	3500±2%	4500±2%	7000±2%	2×4500±2%
	Cement (kg)	600±1%	900±1%	1200±1%	1800±1%	2400±1%
	Cols ash (kg)	200±1%	300±1%	600±1%	800±1%	1000±1%
	Water (kg)	300±1%	400±1%	600±1%	800±1%	1000±1%
	Additive (kg)	30±1%	30±1%	40±1%	50±1%	50±1%
Total Power (kW)		99	120	142	190	240
Unloading Height (m)		≥3.9	≥3.9	≥3.9	≥3.9	≥3.9

Note: 1. The total power does not include the power of screw conveyor; 2. The quantity of hopper can be designed as required; 3. All above specifications are subject to alteration without notice.
Model hzs60 mixing plant
Mixer model: Js1000
Rating production capacity: 60t/h
Mixer power: 22× 2kw
Cubage of aggregate bin: 4× 10m3
Belt conveying capacity: 200 t/h
Weighing scope: Precision in ± 2%kg
According to customer's requirements, we offer the mixing plant in range of model hzs35 to hzs120.
