Excellent Performance Waste Tire Rubber Recycling Machine Plant with Shredder

Product Description

Product DescriptionLYBH tire shredder is primarily used for recycling waste tires to recover valuable materials like rubber, steel, and fabric. It plays a critical role in waste management by reducing the volume of scrap tires, making it easier to handle and process them. The main function of a tire shredder is to cut tires into smaller pieces or chips. This size reduction is essential for further processing and recycling. Our tire shredder is equipped with sorting capabilities to separate different materials (like steel wire and rubber) during the shredding process. It can realize dust control and emissions during the shredding process, ensuring a cleaner operation.
Product Parameters

Name		610 type	710 type	810 type
No	Component	Technical	Technical	Technical
1	Helical roller	610mm *1000mm	710mm*1000mm	810mm*1200mm
2	Straight tooth roller	510mm*1000mm	610mm*1000mm	710mm*1200mm
3	20 mesh Rubber powder	1000-1200kg	1200-1500kg	1500-2000kg
4	Dimension	5400mm*2000mm*1400mm	6200mm*2260mm*1700mm	6400mm*2700mm*2400mm
5	Motor power	Y2-325M2-6 -200-220kw	Y2-355m2-6 -250kw-280kw	Y2-400m2-8 -315kw
Auxiliary Machine
No	Component	Total power	Total power	Total power
1	main vibrating screen	29kw	31kw	48kw
2	secondary vibrating screen
3	9000 magnetic separator
4	rubber powder feeding belt
5	anti-tying belt machine
6	12000 magnetic separator
7	rubber powder collector

Process:

Steel Wire Removal Process
1	Tire Steel Wire Drawing Machine	Remove the tire bead wire
Rubber Block Process
2	Shredder with rolling screen	Shredding the tire into ≤50mm rubber pieces
Wire Separation
3	Rubber Grinder	Peel the capillary wire in the tire and obtain 1-5mm rubber particles
Rubber Granulating Process
4	Rubber Granulating Machine	Grind the rubber to 15-200 mesh as required
Dust Removal Process
5	Magnetic Separator	Remove wire from rubber particles
6	Fiber separator	Separation of fibers from tire particles
7	Dust removal equipment	Dust removal

Functions:

Double-shaft shredder	Crush waste tires of various sizes, using high alloy steel imported from Europe as cutting tools, with a detachable and interchangeable double row knife structure design to improve tool utilization rate
Steel wire separator	Cut the rubber block through moving knife and fixed knife,Qualified rubber particles and steel wires are discharged through the sieve
Conveyor	The material surface of the rack has undergone rust removal treatment
Magnetic separator	The type of magnetic separator is permanent magnet self dumping type, which can effectively screen the separated steel wire.
Vibrating screen	Separate the steel wire from the large rubber block/steel wire through vibration
Electronic control system	The main control cabinet and control platform are independent of each other, and the design of touch screen and button control mode enables operation,The control interface is more user-friendly and easy to operate

Detailed Photos
Flow Chart:
Double Shaft Shredder - Double Drive

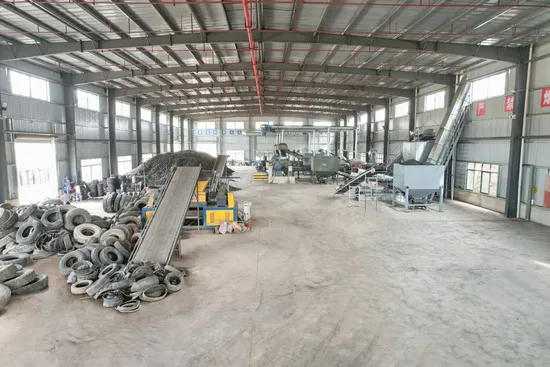

The waste tire recycling production line can be designed according to customer requirements, recycling tires within the diameter range of 400-3000mm, with strong applicability. The discharge size can be controlled within the range of 5-100mm, and the output can reach 200-10000kg/h.
The production line adopts a PLC control system, which is easy to operate and maintain, and has the characteristics of low energy consumption and long service life.
Company ProfileAs the guardian of green life, Qingdao LongyuanBaihong Machinery Equipment Co., Ltd. has been adhering to the principle of "pursuing green fashion and embracing green life" since its establishment, and has focused on the development, production and sales of recycling equipment for many years. Products include scrap plastic recycling machines, waste tire recycling machines, waste tire pyrolysis carbon black equipment, hazardous waste shredding systems, shredders, crushers and other related auxiliary equipment.
Our company continues to develop green environmental protection technology, unswervingly follows the path of sustainable development, and strives to grow into a top one-stop integrated service provider in the resource recycling industry.
Our CustomersWorkshop:
Certifications
Packaging & Shipping
FAQQ: Why Choose Us?
1). We are manufacturer with own factory for many years with CE Certification.
2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).
Q: What Is Our Service?
Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
After-Sale Service
We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation, commissioning.

---
