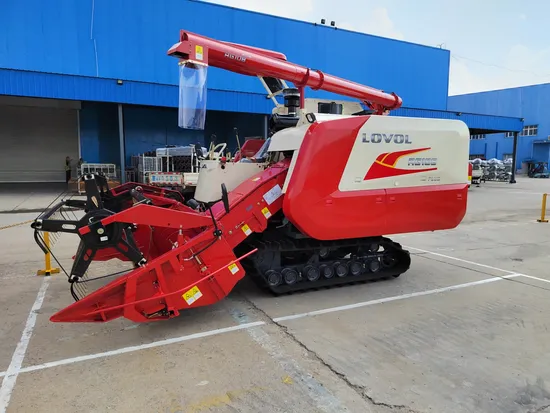

| Full Feeding Combine Hrvester RG108 PLUS | |||
| Product Model | RG108 PLUS | ||
| Overall dimensions | Length(mm) | 5200/5970 | |
| Width(mm) | 2750/2410 | ||
| Height(mm) | 2750/2875 | ||
| Weight(kg) | 3000 | ||
| Engine | Model | QUANCHAI | |
| Structure type | Four-stroke,water-cooled, turbocharged diesel engine | ||
| Rated power(kW) | 73.5 | ||
| Rated speed(rpm) | 2400 | ||
| Fuel type | Diesel(0#) | ||
| Fuel tank(L) | 95 | ||
| Walking part | Track | Specification link | 500*90*51 |
| Min ground clearance(mm) | 350 | ||
| Gearbox type | HST | ||
| Transmission type | (HST+3-gear) continuously variable-speed | ||
| Theoretical traveling speed(km/h) | Low speed 0-3.96,Standard 0-5.14, Walk speed 0-7.37 | ||
| Header system | Header height(mm) | 2200 | |
| Threshing part | Threshing type | Vertical type axial-flow bar tooth type | |
| Threshing cylinder | Outer diameter(mm) | φ620*1790 | |
| Rotate speed(r/min) | 580 | ||
| Grain unloading part | Volume of grain tank(m³) | 1.78 | |
| Unloading grain rotation range(Degree) | 270 | ||
| Unloading grain height range(mm) | 880-4500 | ||
| Electrolyte and others | Battery | Voltage(V) | 12 |
| Starting relay | Rated current(A) | 50 | |
| Vilotage(V) | 12 | ||
| Hydulic oil tank volume | 21 | ||
| Hourly production(hm2/h)(Vertical dry field crops environment) | 0.3-0.7 | ||
