Stainless Steel Horizontal Type Water Spray Rotating Autoclave Retort

Product Description

Stainless Steel Horizontal Type water spray rotating Autoclave Retort
1. According to the capacity: Can produce 500-5000L
2. According to the shape: Can produce horizontal sterilizer and vertical sterilizer
3. According to the heating mode: Can produce steam heating sterilizer, electric heating sterilizer
4. According to the material: Can produce carbon and stainless steel
Carbon steel horizontal type autoclave retort
The sterilizing machine of this series is suitable to heat and cool the liquid not corrosive to the stainless steel, especially for the heat-sensitive liquid with granules, fibers and high viscosity. This retort sterilizer has high efficiency in heat exchange, can work for long time continuously, and is easy to operate, clean and repair due to its simple structure.
Our retort sterilizer apply to for the sterilization of milk, beverage, juice, soft drink, soy milk, and other similar liquid materials, and it is suitable for aseptic packaging, like PET packing, plastic bottle and glass bottle, etc.
The technical flow progress of autoclave sterilizer retort can be made integrated designing, in accordance with different requirements of various material heating, sterilizing, thermal preservation and cooling. The retort sterilizer also obtain all kinds of complete protections with highly automatic and steady accuracy control.

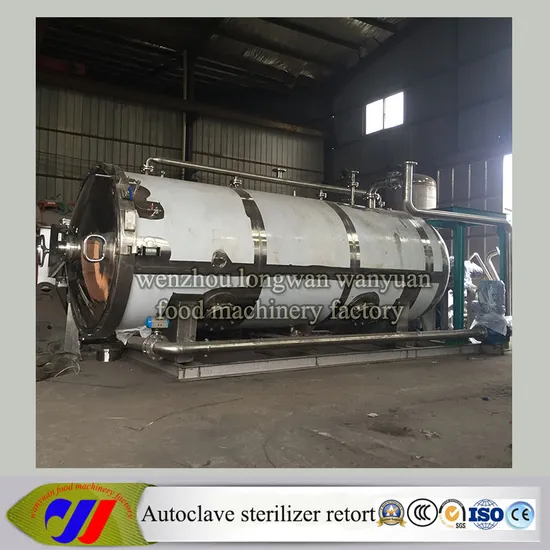

Wenzhou Wanyuan Food Mechanical Fatory- - Autoclave sterilizer retort
Carbon steel horizontal type autoclave retort
The below is autoclave sterilizer retort specification:

Model		GT7C 720	GT7C 1200	GT7C 2000	GT7C 2400
Category		Elementary Pressure Vessel
Internal Diameter (mm)		900	1000	1100	1200
Volume( m³)		1.2	2	3.5	4.2
Design Temperature		143 degree C
Working Temperature		123 degree C
Design Pressure		0.3 MPa
Working Pressure		0.15 MPa
Working Medium		water\steam\compressed air
Main Pressure Part Material		SS304
Welding Coefficient		0.7
Corrosion Allowance		1mm
Net Weight(kg)		600	1100	1700	2000
External Dimensions(mm)	length	2100	2800	3700	4000
	Width	1300	1450	1600	1600
	height	1650	1700	1800	1900

---
