Horizontal Conventional Drilling Milling Machine X6140/X6132 Turret Milling Machine

Product Description

Product Description
X6140 X6132 Universal Horizontal Knee Type Milling and Drilling Machine
Product Introduction:
The X6140 milling machine is a powerful metal cutting machine tool with strong rigidity, a wide range of feed speed changes, and the ability to withstand heavy loads of chips. This milling machine is a general-purpose machine tool mainly suitable for mass production of metal parts. This milling machine is suitable for milling various parts with cylindrical, disc milling cutters, angle milling cutters, forming milling cutters, and end face milling cutters. This type of milling machine can process flat surfaces, inclined surfaces, grooves, holes, gears, etc. If a universal milling head, workbench, indexing head, and other accessories are used, the machining range of the machine tool can be expanded. The workbench can rotate 45 º to the left and right respectively. When the workbench rotates a certain angle around its vertical center and is equipped with a indexing head, it can mill the spiral surface (such as the spiral groove of the drill bit, spiral gear, drum, etc.).
Product Features:
1-Using rectangular guide machine is Rigid good.
2-Work table and guide rail through the ultra audio spark quenching.
3-Work bench X. Y.Z are gear drive automatic feed and manual operation.
Product Parameters

Specifications	(Units)	X6140	X6132
Table size(length×width)	mm	1700×400	1325x320
Number/Width/Pitch of T-slot	mm	3/18/70	3/18/70
Max. load of table	kg	500	500
Table travel X/Y/Z (manual/auto)	mm	900/880,315/300,350/330	700/680,255/240,350/330
Range of table speed X/Y/Z	mm/min	23.5-1180/15-786/8-394	23.5-1180/15-786/8-394
Rapid speed of table(X/Y/Z)	mm/min	2300/2300/770	2300/1540/770
Distance between spindle nose and table	mm	30-380	30-350
Distance between spindle and column	mm	255-570	215-470
Spindle taper		ISO50 7:24	ISO50 7:24
Spindle bore	mm	Φ29	Φ29
Spindle speed	rpm	18 steps 30-1500rpm	18 steps 30-1500rpm
Max rotary angle of table		±45°	±45°
Spindle motor power	kW	11	7.5
Feed motor power	kW	1.5	1.5
Feed motor speed	rpm	1430	1400
Overall dimension	mm	2600×2200×1800	2300x1800x1600
Machine weight	kg	3800	2650

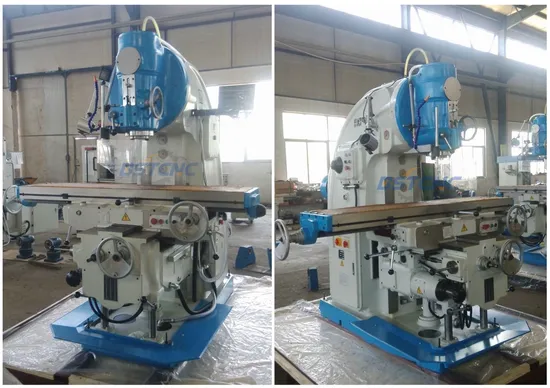

Detailed Photos
