High Precision Bench Engine Lathe Machine CZ1340g/1 CZ1440g/1 Precision Horizontal Metal Bench Lathe Machine

US$2,500.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CZ1340G/1 CZ1440G/1
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
High Precision Bench Engine Lathe Machine CZ1340g/
Swing Over BedTmm
330
Swing Over CarriageTmm
195
Swing Over GapTmm
476
Width of Bed-WayTmm
186
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8458190000
Production Capacity
200

Packaging & Delivery

Package Size
255.00cm * 114.00cm * 175.00cm
Package Gross Weight
505.000kg

Product Description

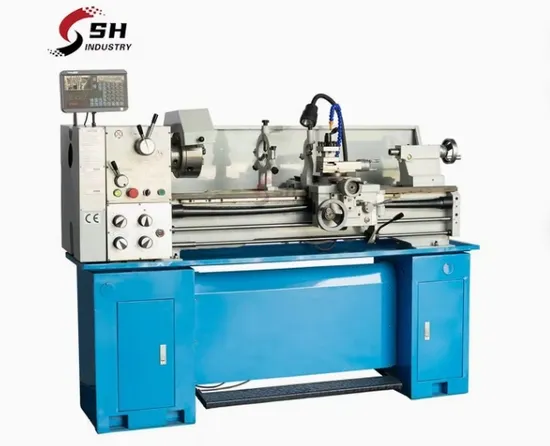

High Precision Bench Engine Lathe Machine CZ1340G/1 CZ1440G/1 Precision Horizontal Metal Bench Lathe Machine
Product Description
Characteristics:
Supersonic frequency hardened bed ways
Precision roller bearing for spindle
High quality steel,ground and hardened gear inside headstock
Easy and fast operating gear box
Enough strong power motor
ASA D4 camlock spindle nose
Various threads cutting functions available
Main technical parameters:
Specifications CZ1340G/1 / CZ1440G/1
Swing over bed mm 330/355
Swing over carriage mm 195/220
Swing over gap mm 476/500
Width of bed-way mm 186
Distance between centers mm 1000
Spindle taper MT5
Spindle bore mm 38 51
Step of speed 8 8
Range of speed rpm 70-2000 84-1850
Head nose D1-4 D5 with D5' chuck
Metric thread mm 26 kinds(0.4-7)
Inch thread T.P.I 34 kinds(4-56)
Module thread M.P 16 kinds(0.35-5)
Diametral thread D.P 36 kinds(6-104)
Longitudinal feeds mm/r 0.052-1.392(0.002''-0.0548'') 0.091-2.533(0.0036''-0.1005'')
Cross feeds mm/r 0.014-0.38(0.00055''-0.015'') 0.025-0.69(0.0012''-0.0345)
Diameter of lead screw mm 22
Pitch of lead screw 3mm or 8 T.P.I
Saddle travel mm 1000
Cross travel mm 170 160
Compound travel mm 74 70
Barrel travel mm 95
Barrel diameter mm 32
Taper of center mm MT3
Motor power Kw 1.5(2HP)
Coolant motor Kw 0.04(0.055HP)
Machine(L×W×H) mm 1920x760x760
Stand (left)(L×W×H) mm 440x410x700
Stand (right)(L×W×H) mm 370x410x700
Machine(N.W/G.W) Kg 505/565
Stand(N.W/G.W) Kg 70/75

Standard accessories:
Stand
4 jaw chuck
Work lamp
Coolant pump
brake
Optional accessories :
Drill chuck
Lead screw guard
4 jaw chuck seat
Taper shank
Work lamp
Tool post guard
Live centers
Coolant system
Chuck guard
Face plate
Taper turning attachment
Back plate
Foot brake
Detailed Photos

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
