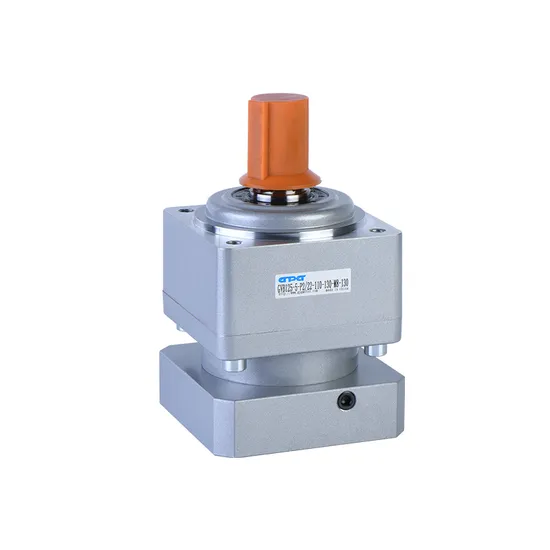

High Precious Low Noise Educer Precision Planetary Gearbox for Machining Equipment

Product Description

TaiBang Motor Industry Group Co., Ltd.
The main products is induction motor, reversible motor, DC brush gear motor, DC brushless gear motor, CH/CV big gear motors, Planetary gear motor ,Worm gear motor etc, which used widely in various fields of manufacturing pipelining, transportation, food, medicine, printing, fabric, packing, office, apparatus, entertainment etc, and is the preferred and matched product for automatic machine.
Model Instruction
GB090-10-P2

GB	090	010	P2
Reducer Series Code	External Diameter	Reduction Ratio	Reducer Backlash
GB:High Precision Square Flange Output GBR:High Precision Right Angle Square Flange Output GE:High Precision Round Flange Output GER:High Precision Right Round Flange Output	050:ø50mm 070:ø70mm 090:ø90mm 120:ø120mm 155:ø155mm 205:ø205mm 235:ø235mm 042:42x42mm 060:60x60mm 090:90x90mm 115:115x115mm 142:142x142mm 180:180x180mm 220:220x220mm	010 means 1:10	P0:High Precision Backlash P1:Precison Backlash P2:Standard Backlash

Main Technical Performance

Item	Number of stage	Reduction Ratio	GB042	GB060	GB060A	GB090	GB090A	GB115	GB142	GB180	GB220
Rotary Inertia	1	3	0.03	0.16		0.61		3.25	9.21	28.98	69.61
		4	0.03	0.14		0.48		2.74	7.54	23.67	54.37
		5	0.03	0.13		0.47		2.71	7.42	23.29	53.27
		6	0.03	0.13		0.45		2.65	7.25	22.75	51.72
		7	0.03	0.13		0.45		2.62	7.14	22.48	50.97
		8	0.03	0.13		0.44		2.58	7.07	22.59	50.84
		9	0.03	0.13		0.44		2.57	7.04	22.53	50.63
		10	0.03	0.13		0.44		2.57	7.03	22.51	50.56
	2	15	0.03	0.03	0.13	0.13	0.47	0.47	2.71	7.42	23.29
		20	0.03	0.03	0.13	0.13	0.47	0.47	2.71	7.42	23.29
		25	0.03	0.03	0.13	0.13	0.47	0.47	2.71	7.42	23.29
		30	0.03	0.03	0.13	0.13	0.47	0.47	2.71	7.42	23.29
		35	0.03	0.03	0.13	0.13	0.47	0.47	2.71	7.42	23.29
		40	0.03	0.03	0.13	0.13	0.47	0.47	2.71	7.42	23.29
		45	0.03	0.03	0.13	0.13	0.47	0.47	2.71	7.42	23.29
		50	0.03	0.03	0.13	0.13	0.44	0.44	2.57	7.03	22.51
		60	0.03	0.03	0.13	0.13	0.44	0.44	2.57	7.03	22.51
		70	0.03	0.03	0.13	0.13	0.44	0.44	2.57	7.03	22.51
		80	0.03	0.03	0.13	0.13	0.44	0.44	2.57	7.03	22.51
		90	0.03	0.03	0.13	0.13	0.44	0.44	2.57	7.03	22.51
		100	0.03	0.03	0.13	0.13	0.44	0.44	2.57	7.03	22.51

Item		Number of stage	GB042	GB060	GB060A	GB90	GB090A	GB115	GB142	GB180	GB220
Backlash(arcmin)	High Precision P0	1				≤1	≤1	≤1	≤1	≤1	≤1
		2						≤3	≤3	≤3	≤3
	Precision P1	1	≤3	≤3	≤3	≤3	≤3	≤3	≤3	≤3	≤3
		2	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5
	Standard P2	1	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5
		2	≤7	≤7	≤7	≤7	≤7	≤7	≤7	≤7	≤7
Torsional Rigidity(N.M/arcmin)		1	3	7	7	14	14	25	50	145	225
		2	3	7	7	14	14	25	50	145	225
Noise(dB)		1,2	≤56	≤58	≤58	≤60	≤60	≤63	≤65	≤67	≤70
Rated input speed(rpm)		1,2	5000	5000	5000	4000	4000	4000	3000	3000	2000
Max input speed(rpm)		1,2	10000	10000	10000	8000	8000	8000	6000	6000	4000

Noise test standard:Distance 1m,no load.Measured with an input speed 3000rpm

---
