Hot Sale Overhead Crane with Electric Hoist with Hook Lifting From Sweden

Product Description

Heavy Duty Machinical Hook Crane Hook Load Hook
Company Information
Gigasense products within Force Measurement and Crane Safety are well known high quality products, built from many years' experience and used by leading heavy duty industry around the world.
Gigasense products meet the highest demands of performance level requirements. We are represented by many selected local partners in more than 30 countries on six continents.
Automatically hooks up, safety locks and releases.
The risk for injury is dramatically reduced.
No climbing or helpers injured or squeezed by the load in the dangerous loading or drop zone.
New Concept Saves Time and Increases Safety
Lifting operations with mobile cranes and industrial hoists can safely be managed by the operator alone. He can remain at the controls during lifting and release operation.
HOOK UP
Lifting eye. Do not use sling or rope.
LIFT
When the hook is engaged,
the load tension automatically safety locks the hook and housing assembly.
LOWER
After completed lifting operation the hook is lowered until it tilts into release position and opens.
RELEASE
The hook automatically frees itself from the load and is ready for the next lifting operation. Do not force it open with any tools!
APPLICATIONS
Blasting mats, pipes, pumps, machines, gas bottles, big bags and general lifting.
The Automatic Hook is available in 5 sizes from 2 to 20 tons. It is easy to operate, has rugged design and a high reliability.

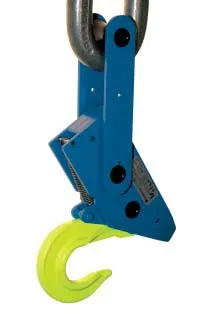

The Automatic Hook consists of hook, housing and link. Forged hook, housing and link are of high-grade alloy
steel. Unloaded, the spring loaded hook is pulled up against the housing in an open, ready-to-load position where it can easily be hooked onto
a lifting eye or other attached hardware.
When the Automatic Hook is engaged, the load tension closes the hook
opening, and the safety latch is automatically locked.
The hook remains safety locked even
if it is unloaded. It is therefore possible to safely set down the load and
make adjustments.
To release the safety lock after completed liftning operation, the hook is
lowered until the upper link has tilted approx. 60° in relation to the housing. When the lock is released, the hook swings up into an open starting position.
The load is released, and the hook is ready for a new lifting operation.
The Automatic Hook is tested and approved by the Swedish Institute for Materials Testing.
Transport case is optional.
Technical size

IS WORKING LOAD LIMIT TON DIMENSIONS MM WEIGHT APPROX. KG SAFETY FACTOR A B C D E * F G 4:1 5:1 2 2 1,6 310 275 63 330 72 20 42 3,0 5 5 4,0 360 325 49 450 85 36 67 6,7 10 10 8 490 425 70 580 110 44 68 15 15 15 12 525 460 83 625 115 54 72 24 20 20 16 668 558 95 728 128 65 83 37 27 27 21,6 617,5 525 95 720 167,5 65 93 37

Blasting mats, pipes, pumps, machines, gas bottles, big bags and general lifting.
Hook Pictures

Factory

---
