Heui Common Rail Laboratory Equipment Measuring Instruments Car Diagnostic Tool Test Bench

Product Description

Product Introduction
JZ-326S common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors.
It can test thousands of injectors, including B-osch, D-elphi, D-enso, S-iemens, C-aterpillar and so on. The experimental data are complete.
JZ 326S HEUI/Common rail Intergrated Mahine is capapble of carrying out test of High-Pressure Common Rail Injector and
Medium-Pressure Common Rail Injector, having two-way operation comprising of push display panel, two switch operation room.
Functions Description
Standard Functions
1. All HEUI injectors can be tested 2. Engine oil/diesel leakage can be detected 3. The software controls the oil supply switch
4. HEUI has a separate diesel pump for fuel supply Oil pressure can be adjusted manual or automatic 5. Oil pressure can be adjusted manual or automatic
First Sealing test
1. Diesel static sealing
2. Engine oil static sealing
3. Dynamic oil rerturn amount
Second, fuel Injection amount test
1. Max fuel injection test
2. Medium speed injection test
3. Idle fuel injection test
4. Pre-injection test
5. Start the fuel injection amount test
6. Oil return amount under various working conditions
Standard functions:
1. Test common rail injectors
2. Test the piezo fuel injectors
3. B-osch IQA code generation
4. Real-time display injection/return curves
Optional functions:
1. Test the 4-pin injector
2. D-enso injector QR code
3. S-iemens VDO-IIC coding
4. D-elphi C2i, C3i coding
5. B-osch piezo IMA, ISA coding
6. C-ummins injector correction code
Our Advantage

Hardware advantage

1. Motor power is 6.5 KW

2. Air-cooled heat dissipation kit

3. Metering valve detect the fuel flow

4. Imported flow sensor from Germany

5. Equipped with B-osch genuine DRV

6. Equipped with B-osch genuine CP3 pump

7. Equipped with B-osch genuine common rail tube

8. Oil tank (including heating,refrigeration,liquid level detection,temperature detection)

9. Short-circuit protection, ground protection, over-pressure protection during the testing

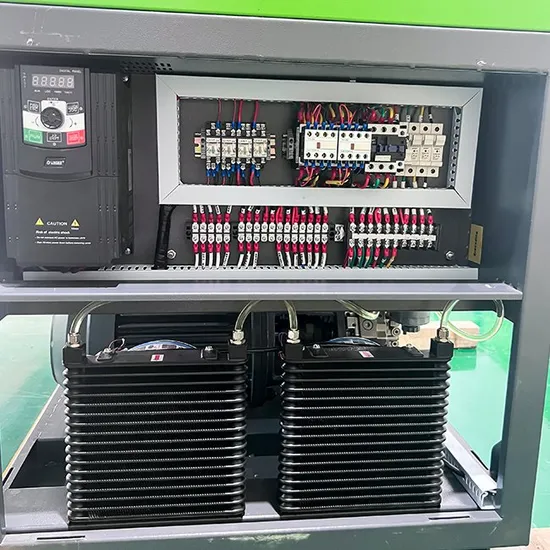

10. Equipped frequency converter to achieve testing function under different speed conditions

11. Equipped precise filter before flow sensor, which can effectively keep the sensor clean and extend the flow sensor usage life

Software advantage

1. Timing injection responding sensing system of the injectors

2. Coding system, can generate different compensation codes and correction codes

3. Measurement system of resistance and inductance of injector's solenoid valve

4. More than 3000 test data used for different brands injectors and pumps calibrations

5. Data backup, system software and database upgrade free charge all the time by remote

6. Electronic measuring system, automatic testing the fuel quantity of all working conditions, and generate report after testing

7. Automatic test injectors under different working conditions, automatic analysis results, and generate report after testing

8. Intelligent algorithm is used to automatically calibrate the fuel quantity of the new injector, and generate reports after testing

Testing Details
Technical Parameters

Technical Parameters
Output	4 KW / 5.5 KW
Power	3-Phase 4-Wire 380V 50/60HZ
Rail Pressure	0~2700 Bar
Rail Pressure Precision	±5 Bar
Tank Volume	20L/20L
Fuel Temperature	40±2ºC
Filter Precision	< 5μm
Gross Weight	500 kg
Packing Size	1450×1050×1650 mm
Speed Control Model	Converter Control
Temperature Control System	Air-Cooled Heat Dissipation
Nozzle Sensor	Imported Original Elliptical Type Flow Sensor
Language	English, Spanish, Russian,etc
Material	Metal Plate
Painting	Powder Painting, Durable
Color	Green (can be customized)
Logo	Jing Zheng Hong Ye (can be customized)
MOQ	1 Piece
Payment	40%Deposit, the rest paid before delivery
Warranty Time	12 months
Delivery time	30 days after prepaid
Shipping Packing	Wooden Case

Related Products and Fixtures
Our Company
Packaging and Delivery
Exhibition
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years. Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
Contact Us
Keith/ Djamel | Sales
+86 1891 5270881
Wuxi Jia Miao Auto Technology Co., Ltd
Wuxi Chengshunda Automobile Technology Co., Ltd.
Address: No. 117 Xinzhuang Road, Zhutang Town Wuxi City, Jiangsu Province, China
