Product Description

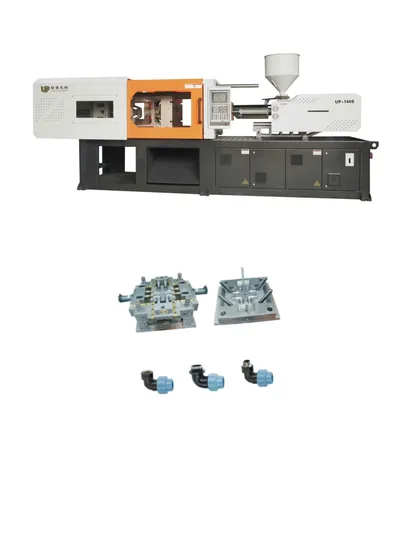

China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd. specializes in providing core parts manufacturing solutions, offering precision plastic injection molding equipment and small plastic molding solutions. They are also a supplier of mining machinery, cable tie molds, and refrigeration equipment.
Product Description:
China Servo Injection Molding Machine
Our China servo injection molding machine offers advanced features for precise and efficient molding processes. Key specifications include:
Modulus of Capacitance: Ensuring optimal positioning, size, and maximum allowable modulus of capacitance for the guide pillar.
Nozzle Parameters: Including spherical diameter, aperture, outer diameter, extension length, and positioning aperture for enhanced control.
Code Mold Parameters: Featuring mold hole and slot size specifications for accurate molding results.
Ejection Mechanism: Providing details on ejection point position, ejector rod diameter, force, and stroke for seamless ejection processes.
Mold Opening Stroke: With maximum opening distance capabilities for versatile molding applications.
Trust in Ningbo Union Power Machinery Co., Ltd. for high-quality standard injection molding machines that meet your production needs.

Technical Parameters	Model UP-140T
Injection Unit	A	B	C
Screw diameter (mm)	38	42	45
Shot Volume (cm3)	215	260	302
Injection weight (g)	194	237	272
injection pressure (Mpa)	186	152	132
Screw speed (rmp)	215
Clamping Unit
Clamping force (KN)	1400
Open stroke (mm)	380
Max Mold height (mm)	450
Min Mold height (mm)	135
Space between tie bars(mm)	420*420
Ejector force (KN)	46
Ejector stroke (mm)	120
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	13(14)
Heating power (KW)	8.2
Machine dimension (M)	4.2*1.2*1.9
Machine weight (T)	3.4
Oiltank cubage (L)	190

Ningbo Union Power Machinery Co., Ltd. - Plastic Injection Molding Machine
Plastic Injection Molding Machine
Welcome to Ningbo Union Power Machinery Co., Ltd., a leading manufactory offering high-quality plastic injection molding machines at competitive factory prices. Our machines are designed to meet strict quality control standards, ensuring top-notch performance and durability.
Key Features:
High-quality plastic injection molding machine
Competitive factory prices
Strict quality control department
Reliable performance and durability
Benefits:
Guaranteed good quality
Customer-friendly service
Specialized shipment company for hassle-free delivery
Choose Ningbo Union Power Machinery Co., Ltd. for your plastic injection molding machine needs and experience the perfect blend of quality, affordability, and reliability.

---
