Gap Bed Lathe Turning Lathe Machine C6241 Metal Lathe Machine Price

US$6,500.00-8,500.00 1 Piece (MOQ)

Basic Info.

Model NO.

C6241

Guide Rail

Horizontal Guide Rail

Power Source

Electric

Controlling Mode

Artificial

Automatic Grade

Semiautomatic

Setting Mode

Floor-type

Precision

High Precision

Certification

CE, RoHS, ISO 9001

Condition

New

Swing Over Bed

410mm

Swing Over Cross Slide

220mm

Swing in Gap

640mm

Width of Bed

300mm

Spindle Bore

80mm

Transport Package

Wood Case

Specification

CE ISO9001 RoHS

Trademark

L&T

Origin

Tengzhou China

HS Code

84592900

Production Capacity

50 PCS/Month

Product Description

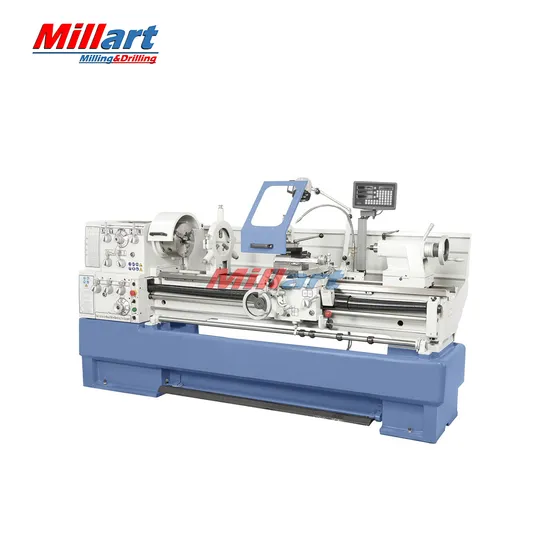

Gap Bed Lathe Turning Lathe Machine C6241 Metal Lathe Machine Price
Feature:
The guide way and all gears in the headstock are hardened and precision ground.
The spindle system is high rigidity and accuracy.
The machines have powerful headstock gear train, high rotating accuracy and smooth running with low noise.
An overload safety device is provided on the apron.
Pedal or electromagnetic braking device.
Tolerance test certificate, test flow chart included
Technical parameter:

Model	C6241
Swing over bed	410mm
Swing over cross slide	220mm
Swing in gap	640mm
Distance between centers	1000/1500/2000/3000 mm
Valid length of gap	165mm
Width of bed	300mm
Spindle nose	D1-6
Spindle bore	58mm
Taper of spindle bore	No.6 Morse
Range of spindle speed	12 changes, 25-2000r/min
Max.travel of top slide	128mm
Max.travel of cross slide	285mm
Max.section of tool	25x25mm
Pitch thread of leadscrew	6mm or 4T.P.I.
Longitudinal feeds range	42 kinds, 0.031-1.7mm/rev
Cross feeds range	42 kinds, 0.014-0.784mm/rev
Metric threads range	41 kinds, 0.1-14mm
Inch threads range	60 kinds, 2-112T.P.I.
Diametrical pitches range	50 kinds, 4-112DP
Module pitches range	34 kinds, 0.1-7MP
Dia. of tailstock sleeve	60mm
Travel of tailstock sleeve	128mm
Taper of tailstock sleeve	No.4 Morse
Power of main motor	5.5kW(7.5HP) 3PH
Power of coolant pump	0.1kW(1/8HP) 3PH

Standard accessories :

Three Jaw Chuck and Adapter	Reduction Sleeve
Four Jaw Chuck and Adapter	Dead centers
Face Plates	Work lamp
Steady Rest	Coolant system
Follow Rest	Foot brake
Oil Gun	Operate tools
Thread Chasing Dial	Operation Manual

Optional accessories :

Taper turning attachment	Quick change tool post
Lead Screw Cover	Live center
Tool post cover	DRO
Chuck cover
