CK6140S/750 Economic Flat bed CNC Lathe/Torno Machine Made in China

Product Description

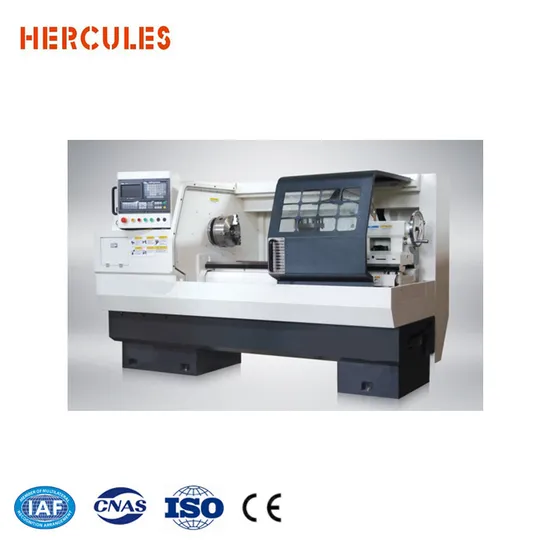

Hercules CNC Lathe/Torno CK6140/750
Machine Main Structure:
Meehanite® Castings Metallurgy: HT250 high strength cast iron produced by the superior Meehanite® process provides superior vibration-damping performance, improved surface finish and extended better tool life. Turcite-B Premium surface coating and high quality hand scrapping. Extended bed width to provide sufficient rigidity and support. Casting with natural annealing and stress release. Gear box
High quality Cr-Mo alloy made with tempering and carburizing. All gear with fine teeth grinding to reduce the noise. Spindle
Completely assembly unit design and easy for after-sales maintenance and replacement. Spindle with better rigidity and longer lasting. Electrical Components TAIWAN main spindle motor. Electrical components selected from SCHNEIDE*.
Technical Specification

Specification	unit	CK6136S/750	CK6140T/750	CK6150B/1000
Swing Over Bed	mm	Φ400	Φ420	Φ520
Swing Over Cross Slide	mm	Φ200	Φ230	Φ305
Rail Width	mm	310	330	390
Distance Between Centers	mm	750	750	1000
Spindle Speed Range	rpm	30-3000	0-2500	200-1600,100-600, 20-130
Through Hole Diameter	mm	58	70	82
Spindle Nose Type		A2-6	A2-6	A2-8
Chuck Size	mm	200	200	250
X-axis Travel Distance	mm	190	210	260
Z-axis Travel Distance	mm	750	750	1000
X/Z Rapid Travel Speed	mm/min	6000/10000	6000/10000	6000/10000
No. of Tools on Station		4	4	4
Max. Tool Section Size	mm	25x25	25x25	25x25
Quill Travel	mm	140	140	150
Quill Diameter	mm	60	60	75
Quill Bore Taper		MT4#	MT4#	MT5#
Spindle Motor Power	kW	5.5	7.5	7.5
Coolant Pump Motor	W	120	120	120
Machine weight	kg	2000	2300	2800
Total Weight w. Packing	kg	2300	2600	3100
Machine Dimensions	mm	2070*1370*1800	2340x1480x1680	2800x1580x1680
Standard accessories	1	Hydraulic chuck with hollow.
	2	Manual tail stock
	3	4 position electrical turret
	4	Servo main motor
	5	GSK 980TDC controller

Detailed Machine Images
Packing

---
