Fully Automatic One Time Glass Cup and Lid Plate Making Machine with CE and ISO Certification

Product Description

Product Parameters

Technical Parameters
Model	TQC-750	TQC-650B
Max. Forming Area	750*480mm	650*320mm
Max. Forming Depth	125mm(custom height)
Sheet Thickness	0.3-1.8mm
Sheet Width	760mm	650mm
Max. Forming Speed	35 times/min
Air Pressure	0.6-0.8mpa
Air Consumption	3.0m³/min	2.0m³/min
Water Consumption	0.7m³/h	0.5m³/h
Rated Power	140Kw	98Kw
Used Power	98Kw	69Kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L8500*W2200*H3100mm	L6000*W2000*H2700mm
Weight	About 6.5T	About 5T

MACHINE MAIN PARTS
Touch Screen/PLC	SIEMENS (Germany)
Servo Motor	YASKAWA (Japan)
AC Contactor/Circuit Breaker	SCHNEIDER (France)
Proximity Switch	ROCKWELL (USA)
Solenoid Directional Valve/solenoid overflowing valve/counterbalance valve	YUKEN (Taiwan)
Intermediate relay	IDEC (Japan)
Intermediate relay base	OMRON (Japan)
Forming Valve	CKD (Japan)
Solenoid Valve	SMC (Japan) / Mindman (Taiwan)

Product Display
Application:

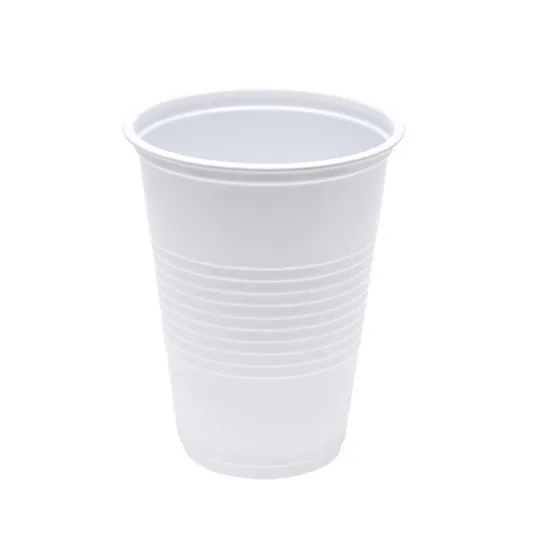

Plastic cup thermoforming machine is our lasted developed product, Sheet feeding and stretching part are driven by servo motor.Machine produces disposable products, such as plastic cup, bowl, lid, and box through the workflow of sheet feeding, sheet heating, forming, cutting and blowing, widely used and suitable for most of the customer requested. PLC for program, manual interface for operation, stable, low noise, and high efficiency.
Main Function
1.positive and negative pressure forming device. 2.vacuum forming device.
3.touch screen computer temperature module point to point control function.
4.air control device.
5.cooling device.
6.die, mold temperature control function.
7.automatic punching and cutting function.
8.automatic stack counting function.
9.edge automatic rewinding function.
10.safety protection device.
MACHINE FEATURES1. Automaticsheet feeder with square steel structure, high wear resistance, more stable, efficiently, the accuracy of feeding size could be improved by automatic feeding.
2. Material holder combines with the machine, which is controlled by cylinder, can move up and down. It is easy for operation, and saving more space.
3. Machine adopts PID temperature system, it shows high precision, and temp control tolerance<1ºc
4. Movably mould device is conveniently to assemble and dismantle mold, and the vibration of the machine could be reduced by machine's counterbalance valve controls the opening and closing speed, good stability, conducive to forming.
What is features and advantages of our plastic thermoforming machine?1. Fully servo driven machine.no noise.no vibration,thermoforming good and fast.
2. Fully machine in compact structure,taking small floor space.
3. Can be adapted to a variety of materials,and the products thicker 8% than the average machine products.
4. Furnaces automatic removal device, can be turned down at any time during production without breaking the sheet reaching without
wasting materials.
5. Electric furnace temperature control system uses intelligent automatic compensation control,a control,a control of a
regulator,easy to adjust the temperature uniformity,easy to use,simple,fast heating,low temperature three times up and down the
oven roast slices.
6. Forming,cutting die servo-driven,two-way adjustable for upper and lower mold stroke,in which the upper mold electric adjustable
in clamping direction. The upper and bwer molds height position can be adjusted conveniently and fast under the clamping
state;lower mold in clamping direction readily accessible buffer,increasing the clamping speed,avoiding shock.
7. Auto cutting, auto counting,auto transmission by PLC.
8. Labor saving, only 1-2 workers packing.
Company Profile
Guest Department
Exhibition
Transport Packaging
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.

---
