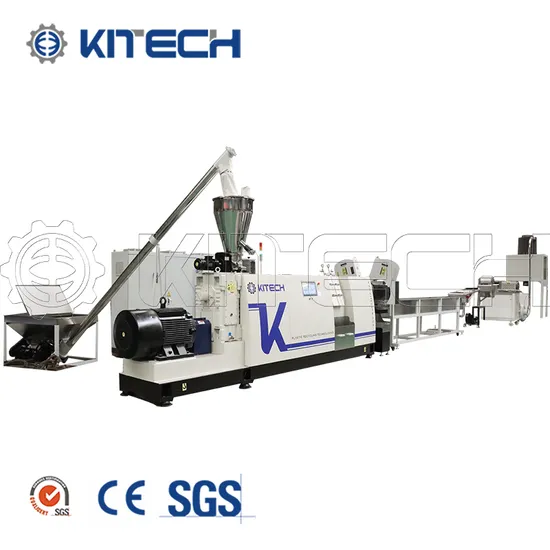

Waste Plastic PP PE Film Granulation Line Waste Plastic Recycling Granulator

Product Description

PP PE film two extruder granulation line /plastic granulation machines/plastic recycling granulator

Recycling Material of Plastic Recycling Pelletizing Machine:

Material	PE, HDPE, LDPE, LLDPE, PP, CPP, BOPP, EPS etc.
Shape	Film, Bag, Woven bag, Raffia,Bubble film, Foam, nonwoven fabric, Filament,sheet,chips
Type	Loose, Bundle, Roll, Scrap
Origin	Off cut, Washed film, In house waste, Regrind

Basic data of Plastic Recycling Pelletizing Machine:

Machine Size	Date of Compactor		Data of Single Screw Extruder			Throughput Rate (kg/h)
	Efficiency Volume (Liter)	Motor Power (KW)	Diameter of screw (mm)	L/D	Motor Power (KW)
KCP 80	300	37	80	36	45/55	160-220
KCP 100	500	55	100	36	90/110	300-380
KCP 120	800	90	120	36	132	450-480
KCP 140	1000	110	140	36	160/185	500-650
KCP 160	1200	132	160	34	220/250	800-1000
KCP 180	1400	315	180	34	315	1000-1200

Specifications of ACE pelletizer:
*Feeding materials into compacting room by conveyor automaticlly.
*Speed possible controlled by inverter
*Metal detector optional
*Rotator and stationary blades are combined to cut up the materials,
*Crushes, dries and compacts the material in one step,
*Guide structure directs the material into extruder screw.
*Single Screw extruder melts the material,
*Double-zone vacuum degassing system,
*Self protective system,
*A single-plate double-station screen changer or double-plate four-station installed on head of extruder filtrates the melt.
*Build in hydraulic control.
*Die-face water ring pelletizing system is a standard pelletizing method,
*Self-adjusting pelletizing,
*RPM of rotator blades is automatic based on melt extruding pressure,
*Dewatering vibration sieve combining with horizontal-type centrifugal dewatering have a good drying efficiency.
*PLC/HMI Controlling system,
*All electrical units mounted in a steel cabinet,
*All heaters equip with Ammeters,
*Safety interlock principle applied in the system,
*All electrical units: LS, Siemens and ABB.
Advantages of Our Plastic Recycling Pelletizing Machine:
*Excellent machenical design
*Automatic intellegent control system
*Top brand components
*High safety protection system
*High efficiency
*High output
*Low energy consumption
*Less-labor cost
Service and support:
*Before-sale:
Introduce products professional
Project engineering

*During manufacturing:
Provide layout and engineering conditions
Inform the schedule of production
Make sure the product designed in accordance with technical document
Test machine before delivery
Provide photos before shipping
*After-sale:
Build customers database. All machines are traceable.
Overseas installation, commissioning and training are available
Speed up service and spare parts supply.
Visit customers and make quality trace periodically
