High Quality Plastic Single Wall Corrugated Pipe Forming Machine

Product Description

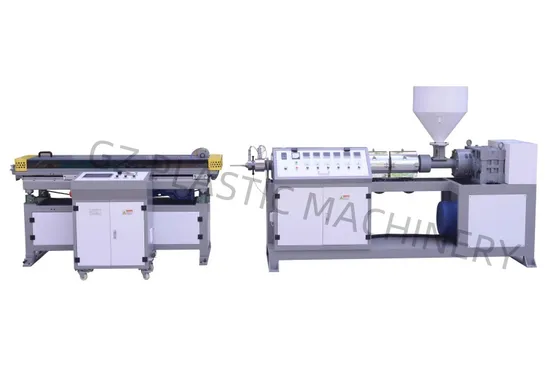

Details : Model GS series High Speed Corrugated Pipe Production Line ( Gear Drive) has adopted PLC control system, which is complete functions easy operation , has linkage functions. When machine power cut off happens in the process of the production , it can effectively protect the safety of equipment and mould. It uses a whole closed track to transfer moulds, stable operation and high production efficiency guarantee the fastest production , the speed can reaching 3 meters per minute. Also this kind of production line can equipped with one mould with double chambers , it's can save a considerable cost for customers.
Main Technical Parameters :

Item No	Motor Power (KW)	Production Speed (m/min)	Mould Perimeter (mm)	Diameter (mm)	Extruder
GS-14-2	1.1	5-25	1978	φ7---φ14	φ45---φ50
GS-55-3	4	5-30	3051	φ10---φ55	φ50---φ65
GS-55-4	4	5-30	4068	φ10---φ55	φ65---φ80

Applications:This production line is suitable for such production as automobile wire harness tube, electric wire conduit, washing machine tube, air-condition tube, extension tube, medical breathing tube and various other hollow moulding tubular products etc.
Features:
1.Fully PLC controlled mahine
2.High and stable extrusion capacity
3.Corrugator mould one mould two size
4.Good water cooling or air cooling system
5.The reducer adopts the design of high torque, which realizes the performance of no noise and smooth operation.
Production Flow:
Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→Cutting machine →double winder→finished product inspecting &packing

Corrugated pipe molds
We have professional mold design technicians and mold processing machines. We can design and process normal corrugated pipe mold blocks, joint corrugated pipe mold blocks and other types corrugated pipe mold blocks according to customer's requirements. All the module blocks are specialized mold steel, which is of high hardness and strong wear resistance.
Pipe Application:
1. Electrical wire conduit pipe2. Automobile wire harness tube3. Shisha hookah pipe4. Washing machine drain hose5. Air conditioner outlet pipe6. Medical breathing tube 7. Extension tube
Workshop
Packaging & Shipping
Company Profile GAOZHONG PLASTIC MACHINERY Co., ltd was established in 2011, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one. the company mainly produces: plastic corrugated pipe production line, Plastic Wire ( steel wire ) Winding Pipe Production Line , PP/PE/PVC pipe production line,plastic extruder, plastic auxiliary machinery, traction machine, Winding machine, plastic pipe mold and other plastics Machinery.At present,the products are sold all over the country and exported to South Korea ,Jordan,Athelbia,France,Vietnam,Singapore,India,Afghanistan,Egypt and other foreign markets. We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company. Our service: 1.Ability to provide the customized plastic extrusion solutions;
2.Complete sales system covering the pre-sales, sales and after service jobs;
3.Commissioning & installation service in customer plant 4.We can send you the video of the running machine. You are welcome to come to visit our factory,and see the machine running.
5.We can design the machines according your requirements(material,power,color),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years. FAQ Q: Are you trading company or manufacturer ?A: We are factory. Q: How long is your delivery time?A: Generally it is 20-45 days after receiving the deposit.The special time need discussing the new delivery date . Q: How do you make the quotation for clients?
A:Please offer the following information, so we can give you price and our advice as manufacturer:
1. Type of pipe you want to produce.
2. Pipe diameters.
3. Raw material and its types
If you can send us photos of your samples, it would be highly appreciated. Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us. Questions for Buyers Pls think about the following questions and then send your messeage to my email. And we will offer you our quotation ASAP.
1.The capacity(kgs per hour).
2.The material of this pipe.
3.Please tell me the voltage in your factory CONTACT US:
If you need to know more information about our company or our product ,welcome to contact us and visit our factory!
Our company hope to cooperate with you to create a better future! ! ! GAOZHONG PLASTIC MACHINERY-Lily Chen Mobile:+8618257946416

---
