Basic Info.
Length of Mixing Drum
4624mm
Transport Package
Nude Packing
Specification
ISO9001: 2000/ CE
Production Capacity
500units/Month
Product Description

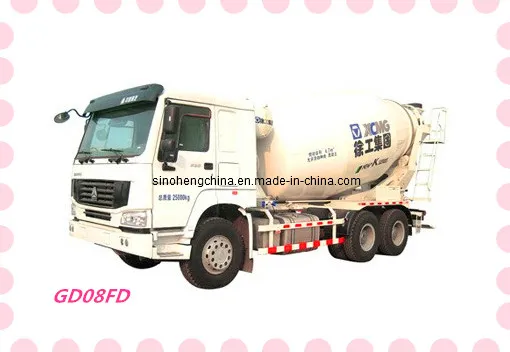

Ford Mixer truck, concrete mixtruck, concrete vehicle,
Feature:
Rotational speed: 0~14r/min
Feed rate: ≥ 3m³ /min
Rest rate: <0.7%
We are the professional manufacture of Concrete transportation in China, We have a yearly production capacity Of ten thousand units. The products are popular at home and have exported to many regions and counties, such as Africa, South America, Middle East and Russia. We will take the faith of creating value for customers, providing better products and more sincere service to customers and building a bright future.
We can also offer:
Concrete mixer of 6/8 suqares
G06ZZ
G06ZZ
G08ZZR
GD08FD
GD10FD
Concrete mixer of 9/10 squares
G10SX
G10ZZ
G10NX
G10NX1
G09SX
G09ZZ
G09NX
G09ZZAL
Concrete mixer of 12 suqares
G12CA
G12DF
G12NX
G12SQL
G12SX
G12ZZ
G12ZZL
Concrete mixer of 14/16 suqares
G16SX
G16NX
G16ZZ
G14ZZM
G14ZZ
G14SQ
Concrete mixer of 15 suqares
G15SX
G15ZZ
Our Advantage:
We can offer the following guarantee
1. Competitive price with perfect quality
2. Quick delivery time
3. The most influential manufacture in China
4. Quick and easy. After-sales service
If the products can satisfy your need, please feel free to contract me so that we can discuss the detail information, thank you.
| ype | Model | Unit | GD08FD |
| Performance of mixing drum | Geometric volume | m³ | 14.3 |
| Mixing volume | m³ | 8 |
| Maximum diameter of drum body | mm | 2280 |
| Length of mixing drum | mm | 4624 |
| Angle of inclination | ° | 13 |
| Rotating speed | r/min | 0~14 |
| Charge speed | m³/min | ≥3 |
| Discharge speed | m³/min | ≥2 |
| Residue ratio of discharge | % | <0.7 |
| Range of slump | cm | 5~21 |
| Hydraulic system | Oil pump | | international brand |
| Motor | | international brand |
| Reduction gears | | international brand |
| Hydraulic circuit | | Closed type |
| Water supply | water tank capacity | L | 450 |
| Way of water supply | | Pneumatic |
| Complete machine | Brand of chassis | | Ford |
| Chassis model | | Cargo 2629 |
| Type of driving | | Left-hand drive |
| Curb weight | kg | |
| maximum gross weight | kg | 2300 |
| Type of drive | | 6×4 |
| Wheel base | mm | 3440+1360 |
| Tyre | | 12.00R20 |
| Means of power takeoff | | Power takeoff by flywheel |
| Notice model | | |
| External dimensions | (length×width×height)mm | 8680×2455×3920 |
| Engine | Model | | Cummins ISB6.7 |
| Rated power | Kw/r/min | 213 |
| Displacement | L | 6.693 |
| Emission standard | | Euro V |
>>
