Product Description
Product Description

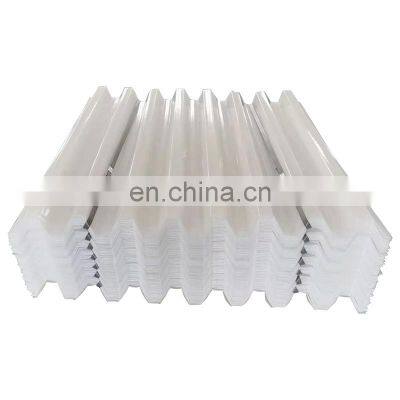

Product OverviewTube SettlerTube settler is a system used for clarification. It uses multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area. It captures the settleable fine floc that escapes the clarification zone beneath the tube settlers and allows the larger floc to travel to the tank bottom in a more settleable form. Thetube settler’s channel collects solids into a compact mass which promotes the solids to slidedown the tube channel.Tube Settler Drawing:SIGNIFICANCE for PP tube settler:1. Clarifiers/basins equipped with tube settlers can operate at 2 to 4 times the normal rate of clarifiers/basins without tube settlers.2. New installations using tube settlers can be designed smaller because of increased flow capability.3. Flow of existing water treatment plants can be increased through the addition of tube settlers.4. Tube settlers increase allowable flow capacity by expanding settling capacity and increasing the solids removal rate in settling tanks.PRODUCT SPECIFICATIONS60 angle inclined 50mm diameter tube settler honeycomb pp packingWe can supply many different size PP tube settler.Any interest about them, I will be happy to give offer to you.ApertureThicknessQuantity (pc/m2)Weight (kg/m2)Surface Area25mm0.4mm623013935mm0.45mm623513935mm0.4mm422210980mm0.45mm422510950.5mm422810950mm0.4mm30178770.45mm3017.58780.5mm3019870.6mm30228780mm0.7mm2019.5500.8mm20225060 angle inclined 50mm diameter tube settler honeycomb pp packing1. Ideal in dirty water applications.2. Far more forgiving of poor water distribution caused by clogged or missing nozzles.3. Water easily redistributes itself.4. Ideal in dusty or wooded environments.5. Easy maintenance.6. Long service life.7. High-temperature designs available.8. Designs available for heavy ice loads.Production ProcessTube settler Production:The tube settler produced by using EPR copolymer plastic as the material, it was hot drawn into slope tube by a infrared thermal machine,and then using patented technology and high frequency to weld into a whole product.Produdct ApplicationApplication and Usage of Tube SettlerInclined tube settler is mainly used for a variety of precipitation and sand removing. Our Tube settler & Lamella models are being used effectively by the State-owned water treatment plants, Municipalities, Domestic and Industrial water and wastewater treatment plants, sedimentation basins and oil separation units. By producing and selling both domestically and internationally, we proudly stand at the leading position when it comes lamella.Product packagingFAQWhy Choose Us?1. Highest qualityWe are the manufacture who adopts import raw materials. It is amazing, and with cheap price and guaranteed quality.2. Most competitive priceWe can adjustment the price according to your market demand’s changes,and also can launch a series of promotional activities in a bad economic environment.3. ProfessionalWe are special in producing and sells, as development, methods, and handling.4. Best serviceAnswering emails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
>>
