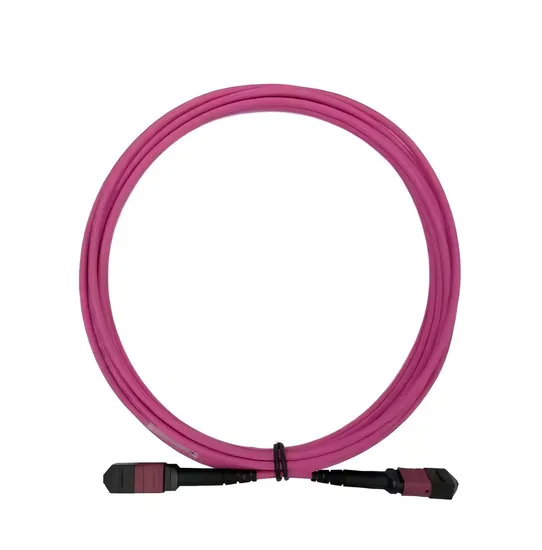

Kexint 24 MTP MPO Patch Cord 5m Om4 Magenta Low Loss 0.3dB

Product Description

Product Description
MPO / MTP patch cord are designed to high density multifibers solutions,fit for different installation environment and easy to install between the trunk line,data centers and buildings.Our trunk cables are 100% factory tested and can meet your special requirements.All the MTP/MPO connector compliance with GR-1435-Core, GR-326-CORE for patchcords, GR-1209-CORE and GR-1221-CORE Compliance
Application
MPO patch cords are widely used in many fields, including data centers, telecommunication networks, local area networks and wide area networks, wiring in communication base stations, wiring in distribution boxes, optical link interconnection in optical active devices, high-performance computing, medical and scientific research instruments and aerospace, etc.
Specification

Item	MPO/PC/F-MPO/PC/F-OM3-24B-3.0-5M-OFNP-AQUA-B
lnsertion loss	PC<0.7 dB
Return loss	PC>25 dB
Insert-pull test	(500 times)<0.3 dB
Operation temperature	-40ºC ~ +80ºC
Anti-tensile force	15kgf

End face geometric parameters and standards:

Requirement	MM (50 & 62.5/125)	SM(APC)
Surface inclination angle (X)	-0.2 °/0.2°	-0.2° / 0.2°
Surface inclination angle (Y)	-0.2°/ 0.2°	7.8°/ 8.2 °
Fiber height	1000nm - 3500nm,	1000nm - 3500nm,
Maximum height difference of all optical fibers	<750nm	<600nm
Core height(nm)	-50-300 mm	-50-300 mm
