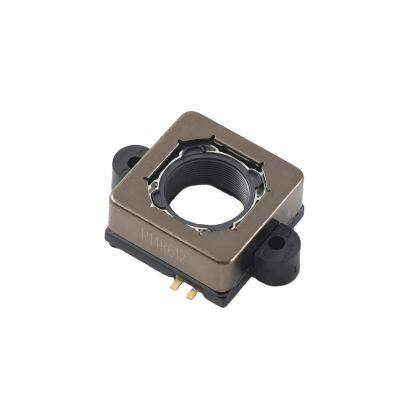

| Technical Parameters of Voice Coil Motor | |||||||
| No. | Item | Model No. | |||||
| 18-006-001 | 18-006-002 | 18-006-003 | 18-006-004 | 18-006-005 | 18-006-006 | ||
| 1 | Dimension | 14 x 14 x 5.9mm | |||||
| 2 | Match Lens | M8×P0.35 | |||||
| 3 | Suitable sensor size | T.B.D. | |||||
| 4 | Resolution | T.B.D. | |||||
| 5 | Rated current | 100mA | |||||
| 6 | Absolute Max. current | 120mA or less | |||||
| 7 | Insulation resitance | 1MΩ or more(at 50V DC, between the terminal and cover) | |||||
| 8 | Direction of movement | From sensor side to lens top side when (+) voltage is applied to + terminal | |||||
| 9 | Mass | 2.2g | |||||
| 10 | Working conditions | Working temperature range:-30 ~+ 70ºC | |||||
| Working humidity ange:10 ~ 90% | |||||||
| 11 | Storage conditions | Storage temperature range:-40 ~+ 80ºC | |||||
| Storage humidity ange:10 ~ 90% | |||||||
| 12 | Torque | 40~200g. Match the lens test: once a month | |||||
| 13 | Rated stroke | Sroke: ≥400 µm | |||||
| Max. Stroke: ≥450 µm | |||||||
| 14 | Starting current | 25~45mA | |||||
| 15 | Hysteresis accuracy | ≤10 µm | |||||
| 16 | Sensitivity(Slope) | 6.5±2.5 µm/mA | |||||
| 17 | Terminal resistance | 29±3Ω | |||||
| 18 | Linearity | ≤10 µm | |||||
| 19 | Tilt | Dynamic(Moving) Tilt : ≤ 7′ | |||||
