fiber grating molded frp plastic grp grid pigeon loft floor

Product Description

Product Description

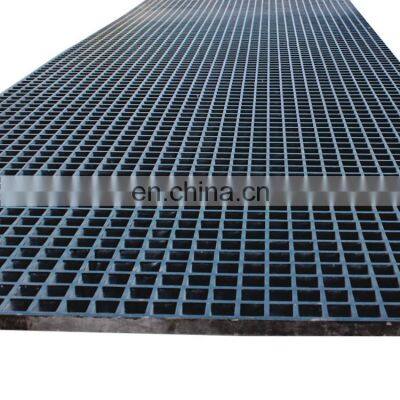

Fiber grating molded frp plastic grp grid pigeon loft floor
FRP Molded Grating is a structural panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in a special metal mold. It provides properties of light weight, high strength, corrosion resistance, fire resistance and anti-skid. FRP Molded Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.
As a new product, FRP grating has the advantages of high strength and light weight. It is suitable for many industries, such as
poultry farming, car wash house, tree grate, power plant, trench cover, sewage treatment plant, etc.
Fiber grating molded frp plastic grp grid pigeon loft floor
Product name: Fiberglass grid
Material: Resin(saturated Polyester Resin), Alkali free yarn
Surface Treatment: Grit ; Pattern; concave ; flat
Color: Can choose color according to customer’s requirement, normal colors: yellow , grey, red, blue, green.
FRP grating is manufcturered by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and thurougly wetted out with resin, layer by layer.
Any process such as post applied grit could be bonded after as a secondary operation.
This continuous process produces an integral, one piece panel, which offers excellent corrosion resistance as well as bi-directional strength.

Specifications(mm)	a*b(mm)	weight(kg)
38*38*25	1220*3660	54
38*38*30	1220*3660	70
38*38*38	1220*3660	88
	1000*4007	81
50*50*50	1220*3660	98
19*19*38*38*30	1075*3626	72
38*38*65	1030*4040	141
40*40*40	1010*4040	81
19*19*38*38*38	1220*3660	92
25*25*50*50*30	1220*3660	62

	High strength Security Anti-aging It contains strong stress resistance, Lightweight, high strength. Excellent electrical insulation. UV absorption agent and polyester surface veil mat are added in the formula.
Good mechanical property Inflaming Retarding Resin content is 35%, fiberglass content is 65%, which increase the rate between strength and weight. The fire retardant effect is of 1 to 25, or oxygen index is above 26. Oxygen index can reach about 26.(Per the requirement of project)
	Size Color Customized size of FRP Grating for Road Drainage Grates are available. Yellow, green, black, grey, transparent, etc Customized color are available.

Fiberglass Grating Properties1. corrosion/slip resistant 2. fire/impact retardant
3. high strength-to-weight ratio4. easy to install and to maintain
ApplicationTrench cover: chemical plants,smelters electrolysis plant,chemical processing plant plants,electroplating plants,battery factory,machinery factory pickling plant,pharmaceutical,printing and dyeing,salt and other waste,to solve corrosion problems,while allowing sewage spilled into the ditch,it is also easy to observe a trench situation.
Sewage treatment: sewage treatment,cooling towers glass steel grille to do the following operating platform surfacing material,do biological water treatment pool linked with,but also for the sewage treatment plant maintenance aisle.Fiberglass grate Benefits>>

Bridge walkways Platforms Trench Covers Walkways Pedestrian Ramps Decks and Patios Staircase Floorings Foot Bridges Swimming Pool Overflow Fencing Elevated Car parking

Packing: Pallets or in bulk.
Our Services
Welcome your inquiry anytime.
We will sever you 24hours!
1.About quality, we can supply free sample of fiberglass plastic grating panel for you.
If ok, welcome your coming to our factory!
2.Before shipping, we must send pictures/videos for your order.

---
