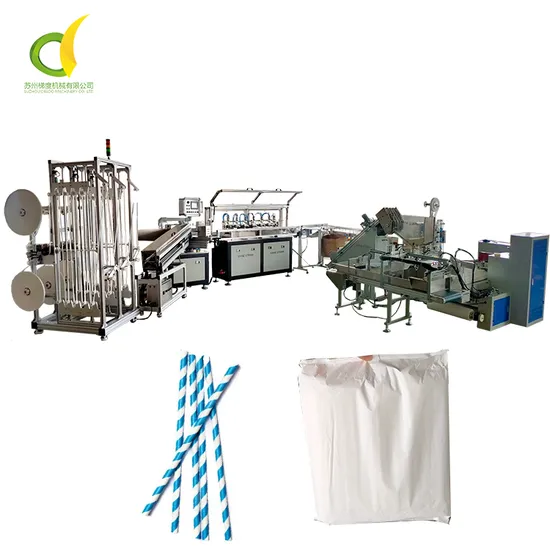

High Speed Automatic Multi-Cutters Paper Straw Drinking Making Machine

Product Description

High Speed Automatic Multi-Cutters Paper Straw Drinking Making Machine Our factory
About us SUZHOU DEEDO MACHINERY was established in 2014, has been established for 10 years.
Our main products are as follows: 1.High speed plastic straws machine.
2.High speed paper straws machine.
3.Paper stick machine.
4.Jumbo paper slitting rewinding machine.
5.straw packing machine:
-Single straw packing machine
--Group straw packing machine
--Straw bending machine
--U straw packing machine
--I straw packing machine
--Straw carton box packing machine
--Paper straw bevel cutting machine. Our equipment is exported to more than 80 countries and regions including the United States,the United Kingdom, Germany.Sweden, Switzerland, Canada, Mexico, Turkey, Bulgaria, Croatia, Macedonia, Belgium, Vietnam, India,South Korea, Indonesia Ecuador, Ukraine, the Middle East and Africa... Product Description
Paper straw making machine is suitable for producing different sizes of paper straws diameter 3-14mm.Mainly used for the production of paper straws, pen core tubes, E-cigarette, Nail Sand Ring,Balloon stick making machine . Straw paper making machine 9 cutting knife system.
1.It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
2. Cutting knife system, new structure of cutting cylinder. Easier to adjust air cylinder travel when changing different
diameter mould.
3. Auto feeding function glue station, Glue station heating and recycle function.auto spray glue system (Import USA Valco Melton) .
4. Equip with 4-5 sets servo motor for cutting system moving left & right, supporting roller and cutting knifes.
5. Machine equip with Intelligent, centralized monitoring, Production data can be introduced into the user ERP system to facilitate production data collection.
6. Remote detection function,machine can connect to internet for remote diagnosis and repair, more simple for after service.
7. paper straw machine Auto paper roll connecting function hanging bracket, auto splicer, 3-5layers.
8. Main electric parts choose famous brand, Like main servo motor, servo motor driver, frequency charger. We have 7 knives, 9 knives and 1 knife for paper straw machine.
1.Material: food grade white craft paper and food grade glue.
2.Sub-raw material: White mineral oil,for lubrication
3.Standard electric power: 380V/ 3phase/ 50Hz,Customizable
4.Capacity:
Max about330pcs/min(7 knife)
Max about550pcs/min(9knife)
Max about750pcs/min; (1 knife)
5.Straw Diameter: 3mm-14mm;
6.Full servo motors control; (5 servo motors(7 knife),5 servo motors(9 knife),4 servo motors(1 knife))
7.Auto paper splicing system with constant tension (keep running in high speed when change paper rolls);
8.Automatic filling glue system (machine can recognize the amount of glue and add it in time automatically);
9.Easily to change straw size;
10. We are factory, software wrote by ourselves, no worry about after-service.
Our advantages 1. Easy To Clean one cutting blade Drink Paper Straws Making Machine can be remotely linked later, and the system software program can be updated online
2. The minimum pipe diameter can reach 3 mm.
3. Full servo control. Adopt Taiwan TECO full servo motor.
4. The cylinder is SMC. The display is from Siemens, Germany.
5. Automatic paper change. It will be more simple, faster and easier to operate.
6.all motors are deployed inside the machine, easy to clean external sanitation.
7. with the simplest transmission principle, to minimize the user maintenance frequency.
8. We have two alarm system, one when jam paper, the other paper loose, or can not winding tube, machine will stop automatic.
9. Automatic straw machine, we have our own patented technology. 10.The best thing we do is after-sales service. Pre-sales and after-sales personnel can be contacted at any time, and we will reply as soon as possible. Details Images
Paper frame auto splice paper 1. The paper holder automatically connects the paper roll. 2. Each paper holder includes a paper tension controller to ensure consistent paper tension. Automatic splicing paper holder, constant tension, faster and more stable.
3. The speed of the paper straw machine does not decrease when the paper is automatically connected. 4.Constant tension. Glue system: 1. Its speed Sync with straw winding and cutting speed. 2. Machine can recognize the amount of glue and add it in time.
automatically. 3. The amount and frequency of adding glue can be set on the PLC screen.
Automatic glue filling glue system update Put it in the glue bucket to avoid secondary contamination. 1. Increase the storage paper, the speed is more stable.
2. Save space. Tube Rolling device 1.Add automatic white oil adding device. 2.The speed is synchronized with the machine speed and can be adjusted manually. Straw cutting device 1.7or9 knife device. 2.Speed 50-110m/min. 3.Od:3-14mm. Display Siemens Germany Servo motor 1.5sets. 2.Taiwan TECO. Collection suction pipe device 1. The width can be customized according to the length of the straw.
2. Bidirectional collection is possible. Related Machines:
Slitting machine Cut the base paper into appropriate width, and then make straw.

1	Machine Model	SS 550	SS 650	SS 750
2	Paper Straw	3-5 layers	3-5 layers	3-5 layers
3	Paper Straw Diameter	3-12 mm	3-12 mm	3-12 mm
4	Motor Model and Power	Gear motor 3kw	Gear motor 3kw	Gear motor 3kw
5	Servo Motor	5 pcs	5 pcs	4 pcs
6	Servo Motor Brand	TECO or Schneider	TECO or Schneider	TECO or Schneider
7	Servo Drive	TECO or Schneider	TECO or Schneider	TECO or Schneider
8	Cutting Blades	7 PCS	9 PCS	1-2 PCS
9	Cutting platform length	1200mm	1600mm	/
10	Cutting Control	Servo control	Servo control	Servo control
11	Machine speed	65-85m per min	110-130m per min	150-200m per min
12	Winding head control	Servo control	Servo control	Servo control
13	PLC touch screen	Siemens	Siemens	Siemens
14	Movement module PLC	Customized	Customized	Customized
15	Speed control	Servo control	Servo control	Servo control
16	Cutting Pneumatic Part	SMC.Japan	SMC.Japan	/
17	Lead Screw Drive	TBI.TAIWAN	TBI.TAIWAN	/
18	Air Pressure	0.6 Mpa	0.6 Mpa	< 0.1Mpa
19	Angel Correction	Auto by motor	Auto by motor	Auto by motor
20	Fix Length Way	Encode (brand:Omron)	Encode (brand:Omron)	Encode (brand:Omron)
21	Machine Area Space	6000mmx6000mm	6000mmx6000mm	6000mmx6000mm

FAQ
Thank you very much for seeing here. If you are interested in our products, please contact me and I will be happy to discuss it with you,thank you! HOW TO FIND Deedo MACHINE?
* Search Made in China, Google, Youtube and Facebook.
* Visit exhibition in different countries.
* Send Deedo Machine an request and tell your basic inquiry.
* Deedo Machine sales manager will reply you in short time and add instant chatting tool.
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
* If we can fullfill your request and you interested in our products, you may pay a visit to DeedoMachine site.* The meaning of
visiting supplier, because seeing is believing, DeedoMachine with own manufacture and developed& research team,we can send you
engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
* Through letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
* By letter of credit, you can lock the delivery time easily.
* After the factory visit, You can ensure the facticity of our bank account.
HOW TO ENSURE THE QUALITY!
* In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have
accumulated professional processing methods over the past years.
* Each component before assembly needs strictly control by inspecting personnel.
* Each assembly is in charged by a master who has working experience for more than 10years.
* After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable
running in customers' factory.
THE AFTER-SALE SERVICE * After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
* After the commissioning, we will package the equipment by standard export package for shipment.
* According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
* Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.

---
