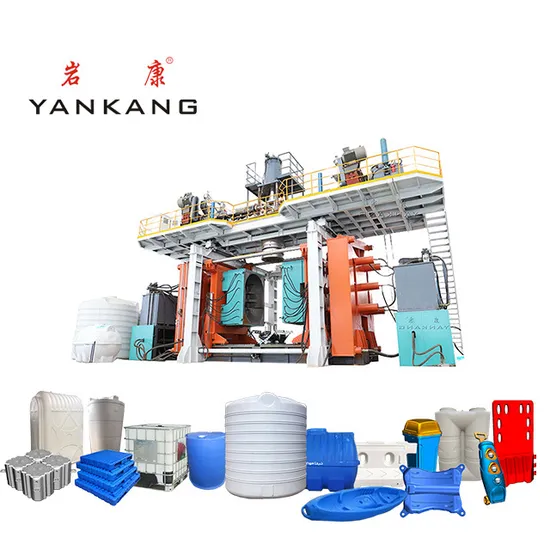

HDPE/PE Extrusion Plastic 220L 500L 1000L 2000L 3000L Water Storage Tank Drum Barrel Container Blow Molding/Moulding/Making Machine Manufacturing Machine

Product Description

Technical Parameter of 2000L Water Tank Blow Molding Machine Output For Each Capacity
2000L water tank blow molding machine can use 500L,700L, 1000L,1500L, and 2000L blow molds.
Can be used for production:500L tank 16-18 PC/H,750L tank 14-16 PC/H,1000L tank 10-12 PC/H,1500L tank 9-12 PC/H and 2000L tank 8-9 PC/H.
For more production details:

Capacity	Product	Unit	Weight	Thickness
500L Tank	16-18	PC/H	6-10KG	2.5m
750L Tank	14-16	PC/H	10-15KG	2.5-3m
1000L Tank	10-12	PC/H	16-20KG	3-3.5mm
1500L Tank	9-11	PC/H	20-30KG	3-4mm
2000L Tank	8-9	PC/H	30-40KG	4-5mm

Technical data for YK 2000L series
In the table below, the data of the blow molding machine of YK 2000L-3 layers, YK 2000L-4 layers, YK 2000L-5 layers, YK 2000L-6 layers are listed.

Technical Data for YK 2000L Series
Model No.		YK 2000L-3	YK 2000L-4	YK 2000L-5	YK 2000L-6
	Specifications	3 layers	4 layers	5 layers	6 layers
Extruders	Screw Diameter	∮90*3	∮90*4	∮90/90/60/90/90	∮90/90/60/90/90
	Motor	55*3kw	45*4kw	45/45/18.5/45/45kw	45/45/18.5/45/45kw
	Plasticizing Capacity	400kg/h	400kg/h	400kg/h	400kg/h
	L/D	32/1	32/1	32/1	32/1
	Max Screw Speed	60RPM	60RPM	60 RPM	60 RPM
Die Head	Accumulator Capacity	80L	80L	80L	80L
	Heating Load	83.2kw	65kw	71.9kw	78.8kw
	Max. Parison Weight	60kg	60kg	60 kg	60kg
Clamping Unit	Clamping Platen Size	1700x1800mm	1700x1800mm	1700x1800mm	1700x1800mm
	Max Mould Size	1600x1900mm	1600x1900mm	1600x1900mm	1600x1900mm
	Clamping Force	1800 KN	1800 KN	1800 KN	1800 KN
	Mould Thickness	1010-1600mm	1010-1600mm	1010-1600mm	1010-1600mm
Hydraulic System	Hydraulic Drive Motor (Main)	42kw	42kw	42kw	42kw
	Hydraulic Drive Motor (Parison Control)	7.5kw	7.5kw	7.5 kw	7.5 kw
	Oil Tank Capacity	1200L	1200L	1200L	1200L
Machine Weight		38 Ton	42 Ton	46 Ton	50 Ton
Dimension	L x W x H	11m*13m*6.2m	11m*13m*6.2m	11m*13m*6.2m	11m*13m*6.2m
Total Power		384kw	448kw	495 kw	516kw
Average Power Consumption		192kw	235kw	255 kw	280kw

SERVICE
Special Design
Qingdao Yankang Plastic Machinery Co., Ltd. is the largest professional blow molding machine integration enterprise in China, including product research and development, production, sales, and after-sales service. It is the pioneer and leader of the large blow molding machine. The company has its own professional research and development base.
The core technology is 100% independent R&d innovation. According to the needs of customers and the situation of the site, we can use the private customized model to create suitable products for customers.
Customized products: various blow molding machines including water tanks, IBC, road barriers, pallets, etc, and blow molds with different capacities.
After-sales Service
TRAINING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory during the periods of installing & adjusting;
INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week(free of charge) in the Buyer's factory.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in the buyer's factory. And the Buyer should also pay for the air ticket for the engineer.
GUARANTEE
The guarantee time is one year after the machines normally work in the Buyer's factory if only the problem is caused due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.
Sales Network
Now, Qingdao Yankang Plastic Machinery Co., Ltd. has successfully occupied the world's major markets. With excellent quality assurance and perfect after-sales service, it has won high praise from customers at home and abroad. The company's products have spread to 60 countries and regions. These include Southeast Asia, the Middle East, Europe, the Americas, Australia, Africa, and so on. It has become the well-deserved "leader" in the blow molding machine industry in China.

FAQ
Q1: What is the warranty of the machine?
A1: The whole machine's warranty period is 12 months and key parts will be dependent.

Q2: Are you an integrated supplier for extrusion molding machines, mold, and auxiliary?
A2: Yes, we can provide the complete solution line to customers according to the customer's requirements.
Q3: How about the quality control in your factory?
A3: Yankang has the SOP (Standard Operation Procedure) and all the production steps must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold, and auxiliary selection but also water .electrical, machine layout in the factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machines and support training to workers also. Currently, we provide visits online by video call .
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 2-3 months.
Q7: Mold trial will be available in the Yankang factory?
A7: Yes, the Customer can send the mold to the Yankang factory and test it.
Q8 . Do you provide any spare parts with the machine?
A8: Yes, Yankang will provide one set of standard spare parts to customers.

---
