Metal-Cutting Tools New Sumore Made in Shanghai China Price CNC Milling Machine Metal

Product Description

Product Description

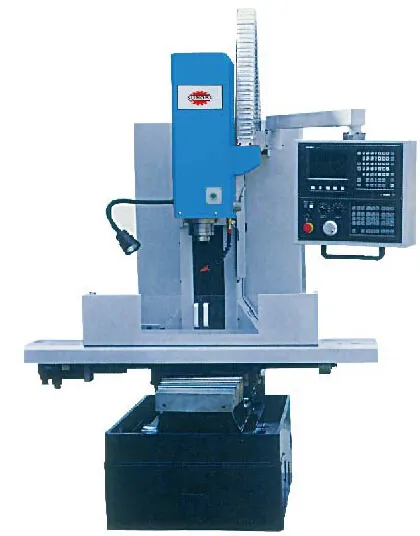

Most Popular Light Industrial Small CNC Milling Machine Price SP2228
Quick details:
Table size : 1000x250mm
X-axis travel: 535mm
Spindle taper: ISO30/BT30
GSK, SIEMENS or FANUC control system
----------------------------------
Product Description
Machine operating system for GSK218M SIEMENS808DA rectangular plastic coated rail rigidity, abrasion resistance, high stability, high load capacity. Column and guide way is ground precisely with high precision CNC control system could be adapted by step motor or servo motor, providing good cost-effective scheme to customers. Machine stand and machine body are designed separately for eay and flexible installment by the user. The high speed, high precision, high rigidity spindle unit Easy work with big work table Can be customized according to customer requirements of the corresponding products The high accuracy pitch compensation, the drive shaft adopts high precision laser measuring instrument compensation make each axis positioning accuracy is more accurate, more suitable for processing high precision parts and mold manufacturing Pneumatic changing way of tools. ----------------------------------
Product Parameters

ITEM	SP2228
X-Axis travel	535mm
Y-Axis travel	320mm
Z-Axis travel	375mm
Distance from Spindle nose to worktable surface	25-425mm
Distance from centre of spindle to surface of column ram	345mm
T slot (width x num.)	16mmX3
Worktable size	1000X250mm
Max.loading of worktable	120Kg
Power of spindle motor	1.5/2.2KW
Spindle speed	4000/(or 8000/12000)
Spindle taper	BT30
Spindle bearing	P4
Rapid traverse speed of 3 axes	X /Y:15m/min(servo)
	Z:15m/min(servo)
Cutting feeding rate	0-2000mm/min
Min.set unit & moving unit	0.001mm
Pitch of X/Y axes	6mm
Pitch of Z axis	6mm
Positioning accuracy (300mm)	±0.008
Repeatability accuracy (300mm)	±0.005
Changing way of tools	Manual
Tool spec. max.dia. (neighboring Tool) x weight x length	φ60mmX3.5KgX175
Machine weight	1700kg
Air pressure	0.6MPa
Power of cooling pump for cutting	370W
Overall sizse	1516X1764X1708mm
Control system	GSK Siemens system

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
