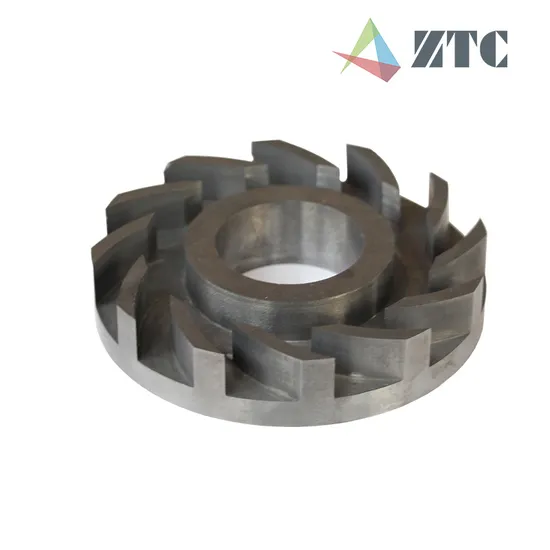

Spare Parts of Horizontal Bead Mill Hardmetal Tungsten Carbide Rotor

Product Description

Product Description
Tungsten carbide bushings are primarily made from tungsten carbide powder and refractory metal powders such as cobalt and nickel. The process involves material formulation, wet grinding, drying, pressing, sintering, and finally machining. The choice of materials and manufacturing process characteristics allow tungsten carbide bushings to operate efficiently in high-temperature, high-pressure, and highly corrosive environments, offering excellent wear resistance and long service life. Consequently, tungsten carbide bushings replace steel and other materials in various mechanical sliding parts, such as automated machinery (extension, swing, sliding, bending, rotary, revolving parts), oil cylinder guide sleeves, submersible pump motors, centrifugal pumps, textile machinery, plastic molding machines, die casting machines, rubber machinery, food machinery, fitness equipment, office machinery, hydraulic handling vehicles, automotive, motorcycles, agricultural and forestry machinery, etc.

Our Advantages
1.Using high-quality virgin tungsten carbide materials.
2.Unlike conventional pressing and sintering ways, our carbide bushings are produced by advanced forming processes such as cold isostatic pressing and overpressure sintering, which makes them in superior product performance.
3.We can produce various complex shapes of non-standard tungsten carbide products based on customer's samples or drawings, ensuring stable performance and reliable quality.
4.Unique quality control during production and stringent final product inspection requirements effectively control internal stress in shaped products, preventing cracking during wire cutting and eliminating defects such as pores and cracks.
5.Non-destructive ultrasonic flaw detection ensures no sand holes or pores.
6.High material density, high strength, impact resistance, corrosion resistance, excellent wear resistance, and long service life for our carbide sleeves.
7.Main grades available for tungsten carbide bushings include YG6, YG8, YG11, YG15, YN8, YN9, YN11, etc.
8.24-hour online service for inquiries and technical consultations.

Detailed Photos

Common Grades

Grades	Hardness(HRA)	Denstity(g/cm3)	T.R.S(N/mm2)	ISO
YG6	91	14.90	1900	K10
YG6X	91.5	14.90	1860	K10
YG8	89.5	14.70	2080	K20
YL10.2	91.5	14.4	3200	K30
YG10X	92	14.45	3000	K40
YG15	87	14.3	3300	K40
YG20	86.5	14.2	3800	K40
YN6	89.5	14.5	1800
YN9	89.5	14.4	2000

Company Profile
Zhuzhou Bullo Cemented Carbide Co.,Ltd is a modern enterprise integrating independent production and trade, and our expertise in the tungsten carbide components began in 2008.The company is located in Zhuzhou City, Hunan Province,and has passed the ISO9001:2015 quality certification system. It owns standardized modern factory, a professional technical and sales team, as well as advanced equipment for production and inspection.
We have many specific tungsten carbide products which cover a wide range of industries,they are mainly divided into two major parts: cemented carbide wear-resistant parts and cemented carbide cutting tools. Part of our tungsten carbide products are listed in detail as follows:
· Tungsten carbide rods, strips, and plates
· Tungsten carbide mechanical seal rings
· Tungsten carbide pin pegs and blocks
· Tungsten carbide grinding jar, balls, jaw plates, and grinding discs
· Crusher and pulverizer blades
· Tungsten carbide nozzles for oil and gas
· Tungsten carbide rotors and stators
· Control valve assemblies and flow trim components
· Valve plugs, valve seats, and valve cages
· Wear-resistant bushings and liners
· Bearings, bushings, guide rails, and sleeves
· Tungsten carbide welding blades
· Tungsten carbide hob rotary cutters and fixed blades
· Tungsten carbide circular saw blades
· Tungsten carbide rotary files
· Tungsten carbide inserts and end mills
· Tungsten carbide rollers
· Tungsten carbide auxiliary powder materials
...
Our products have been widely exported to Russian Federation, Germany, America, South America, etc. And our carbide are widely used for machining cast iron, steel, stainless steel, aluminum, copper, rubber and so on.
Stable quality and satisfactory service are the eternal commitments of Zhuzhou Bullo Cemented Carbide Co., Ltd. We adheres to the philosophy of "high quality, integrity, and innovation" and is dedicated to providing high-quality products and services to all our customers. We warmly welcome interested customers to come and customize their orders and cooperate with us!


Packaging & Shipping

---
