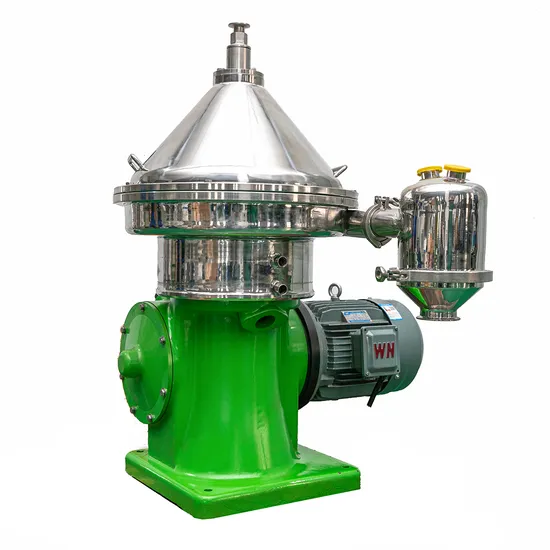

Biological Liquid Filter Centrifuge Separator

Product Description

Changzhou Qianmai Mechanical Equipment Technology Co., Ltd (CHM) is a leading company specializing in the development, testing, manufacturing, sales, and after-sales support of disc separators. Our team of experts, with over 30 years of experience, offers customized separation solutions for the pharmaceutical, biomedicine, and biochemical industries. We also provide timely preventive maintenance, troubleshooting, repair, machine refurbishment, and upgrade services to ensure optimal performance.
Separator Working Principle
Working Principle of Separator In the suspended liquid, multiple phase materials with different densities and indissolubilization obtain different sedimentation rates in the centrifugal force field. Based on this principle, rapidly rotating the disc stake can generate a great G force & more great equivalent sedimentation area, which the differential phase materials can be separated in a short time.
Company: Changzhou Qianmai Mechanical Equipment Technology Co., Ltd
Disc Separator by Changzhou Qianmai Mechanical Equipment Technology Co., Ltd Our disc separator offers numerous advantages over traditional methods:
No filter media consumption, eliminating secondary pollution
Continuous and stable operation
Fast processing speed
Effective treatment
Low energy consumption
Moderate capacity
SIP and CIP functions
Small footprint
Low operating cost
High automation, reliable operation, and low labor intensity

Product Description
Product Description
Welcome to Changzhou Qianmai Mechanical Equipment Technology Co., Ltd
Product: Separator
The separator efficiently handles the separation of liquid/liquid/solid three-phase and liquid/solid two-phase materials. It can separate non-emulsified liquid particles as small as 2μm and solid particles (including cell debris) smaller than 0.5 microns with a density above 1.02g/ml.
Cell Collection Equipment for Fermentation Industry
Changzhou Qianmai Mechanical Equipment Technology Co., Ltd
DFBS and DQBS Series Separation Equipment
Cell collection is crucial in producing fermented drugs. The choice of separation equipment impacts product quality, yield, and processing costs. Our DFBS and DQBS series models are designed for the biological fermentation industry.
Model Features:
Meets GMP and CIP/SIP requirements
Separation G force up to 14500G for high efficiency
Customizable single or modular design

Typical Applications:
Concentration and clarification of fermented mash
Extraction of vitamins, antibiotics, hormones
Collection of microbial cells
Separation and concentration of yeast
Extraction in genetic engineering

Trust Changzhou Qianmai for reliable equipment in the fermentation industry.
Product Parameters

Model	Treatment Capacity (L/H)	Motor Power (KW)	Inlet Pressure (MPa)	Outlet Pressure (MPa)	Weight (KG)	Overall Dimensions (mm)
DFBS260	200-500	2.2	0.05-0.1	≤0.3	260	620*510*1400
DQBS260	700-1500	3	0.05-0.1	≤0.3	280	620*510*1400
DQBS350	1200-2500	5.5	0.05-0.1	≤0.4	450	620*510*1200
DFBS410	2000-4000	11	0.05-0.1	≤0.4	1250	1600*1200*1500
DQBS470	3000-6000	22	0.05-0.1	≤0.4	1670	1850*1550*1800
DFBS550	2000-4000	22	0.05-0.1	≤0.4	2100	1980*1610*1950

Detailed Photos Company Profile Packaging & Shipping FAQ
Product Description
Welcome to Changzhou Qianmai Mechanical Equipment Technology Co., Ltd
Product Description
Are you looking for high-quality mechanical equipment? Look no further! At Changzhou Qianmai, we are a manufacturer with over 30 years of experience in providing top-notch products and services tailored to meet your specific requirements.
Our expert team of engineers and technicians is dedicated to offering a one-stop service that includes research, design, testing, manufacturing, sales, installation, maintenance, and more. Whether you need OEM/ODM or customized solutions, we've got you covered.
When it comes to visiting our factory, we offer various options such as field visits, video conference calls, or pick-up services from Changzhou airport or train station. We strive to make your experience seamless and convenient.
With flexible payment terms and delivery options like EXW, FOB, CFR, CIF, DDU, we ensure a hassle-free transaction process. Our quick delivery times, typically 3 to 30 working days, guarantee that you receive your products promptly.
Rest assured, our equipment comes with a standard 1-year warranty, and our after-sales team is available 24/7 to provide technical support and assistance with any issues. We prioritize customer satisfaction and aim to exceed your expectations.
Contact us today to learn more about our products and services. Let Changzhou Qianmai be your trusted partner for all your mechanical equipment needs!

Application	Model	Treatment Capacity	Motor Power	Inlet Pressure	Outlet Pressure	Weight	Overall Dimensions
		(L/H)	(KW)	(MPa)	(MPa)	(KG)	(mm)
Animal Fat/Plant Oil	DQRE260	700-1500	3	0.05-0.1	≤0.3	280	620*500*1100
	DQBE260	1000-2000	3	0.05-0.1	≤0.4	280	620*510*1200
	DFBE350	1200-2500	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DFHE450	3000-4000	11	0.05-0.1	≤0.4	1450	1850*1550*1800
	DFHE610	6000-10000	22	0.05-0.1	≤0.4	2180	1980*1610*1950
Food/Beverage/Dairy	DQRP260	200-500	2.2	0.05-0.1	≤0.3	260	620*510*1400
	DQHN260	700-1500	3	0.05-0.1	≤0.3	260	620*510*1400
	DQBP350	1200-2000	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DQBN380	2000-3500	7.5	0.05-0.1	≤0.4	1250	1600*1200*1500
	DQBN410	2000-4000	11	0.05-0.1	≤0.4	1250	1600*1200*1500
	DQHP510	3000-5000	15	0.05-0.1	≤0.4	1670	1850*1550*1800
	DFHP610	6000-10000	22	0.05-0.1	≤0.4	2100	1980*1610*1950
Biological Fermentation	DFBS260	200-500	2.2	0.05-0.1	≤0.3	260	620*510*1400
	DFBS260	700-1500	3	0.05-0.1	≤0.3	280	620*510*1400
	DFBS350	1200-2500	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DFBS410	2000-4000	11	0.05-0.1	≤0.4	1250	1600*1200*1500
	DFBS510	3000-5000	15	0.05-0.1	≤0.4	1670	1850*1550*1800
	DFBS610	6000-10000	22	0.05-0.1	≤0.4	2100	1980*1610*1950
Industrial Waste Liquid	DFBY200	200-1000	0.37	0.05-0.1	≤0.3	80	500*600*1200
	DFBY260	700-1500	3	0.05-0.1	≤0.3	260	620*510*1400
	DFBY260	1000-2000	3	0.05-0.1	≤0.4	280	620*510*1200
	DFBY350	2000-3000	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DFBY410	3000-4000	11	0.05-0.1	≤0.4	1600	1850*1550*1800
Chemical Liquid Coal Tar Marine/Mineral Oil	DFBY510	3000-5000	15	0.05-0.1	≤0.4	1670	1850*1550*1800
	DFHY610	6000-10000	22	0.05-0.1	≤0.4	2100	1980*1610*1950

---
