Continuous Flow Centrifuge Hydraulic Oil Water Separator with Self-Cleaning

Product Description

Product Description
Continuous Flow Centrifuge Hydraulic Oil water Separator with self-cleaning Introduction:

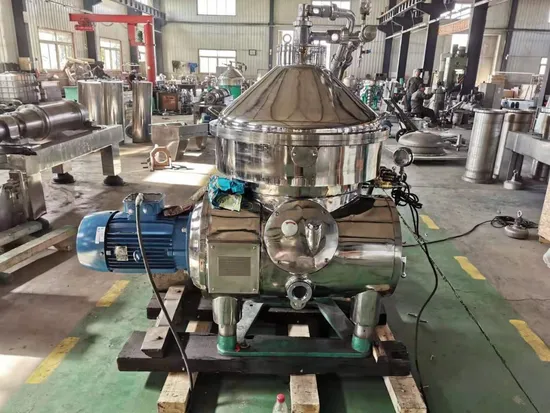

Disc separators from Shenzhou Machinery are designed especially for liquid-based applications. Using centrifugal force, they separate substances and solids from liquids. They are equally as effective at separating liquid mixtures at the same time as removing solids. Disc separator have become indispensable in all sectors; in fragmentation and enzyme treatment in the chemical and food industry, oils and fats recovery, the production of dairy products, beer, wine, fruit and vegetable juices. As stand-alone machines or integrated in complete process lines, Shenzhou Separator's extensive product line offers value adding solutions that point the way forward for the entire branch in terms of quality and customer benefit. The disc separator, or disc stack separator, comprises a rotating assembly bowl operating at high speed, a drive mechanism and a cast base frame.
Features: 1.Machine starts the friction to start off, about six to ten minutes. the machine runs smoothly, low noise and vibration, the installation path is very easy to operate. 2.The bearings use imported F*AG, transducer using Japan brand " Fuji", the main strengthen parts of Roller body and Roller cover use 2Cr13,and the other parts of contacted materials such as Disc all use 304L. 3.The Stainless steel cover use SUS304. 4.The base use casting steel, coating does the same way as ship bottom.
5. Siemens PLC Control Box
Application Scope: Oil: Clarification and Separation for Vegetable Oil,Olive Oil , Palm Oil , Avocado Oil ,Coconut oil Animal Oil, Fish Oil, Crude Oil, all kinds of fuel oil and Luge. Waste Oil Purification . Engine oil purification .
How to choose a suitable disc centrifuge machine? You need to know the information as below:
1. What's the materials to separate?
2. Do you want a solid-liquid separator or a solid-liquid-liquid separator?
3. What's the content of solid? Do you know the size of solid?
4. What's the capacity do you want?
5. Other requirements.
If you don't know which machine is suitable for you, feel free to contact with us!
Owen
Shenzhou Group Co., Ltd
Liaoyang Shenzhou Machinery Equipment Co., Ltd

Technical parameter

Main parameter	SZS 445	SZS 530	SZS 550
Bowl Inner Diameter	445 mm	530 mm	550 mm
Disc Number	73	80	110
Bowl Rotating Speed	5100 rpm	4650 rpm	4500 rpm
Separating Factor	6480	6400	6230
Capacity	35000~40000 L/h	45000 L/h	75000 L/h
Motor Power	37 Kw	37 Kw	55 Kw
Nozzle	10	10	12
Dimension (L×W×H) mm	1503×1129×1516	1430×1174×1544	2044×1320×1954
Weight (kg)	1100	1550	2100
Warranty	1 year	1 year	1 year

Product Detail

Drive	gear / belt
Bowl speed	4000 - 10000 rpm
Centrifugal force	> 10,000 g
Bowl volume	8 - 300 L
Bowl weight	50-15000 Kg
Solids holding space	2 - 50 L
Inlet pressure	0-0.1 Mpa
Liquid outlet pressure	0.2-0.6 Mpa
Starting time	5 - 30 mins
Stopping time(no brakes)	> 40 mins
Product Keywords	industrial centrifuge large scale

Shenzhou Separator can look back on more than 60 years of tradition. Today, the company is the leading manufacturer in mechanical separating technology in China. Its developments are used in a wide range of areas - in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields and industry. The ecological dimension is particularly noticeable in the field of environmental technology. Based on this extensive experience over many years, Shenzhou Separator develops and builds customized centrifuges. If required by the customer, we can also supply entire process lines, incorporating all the components.

---
