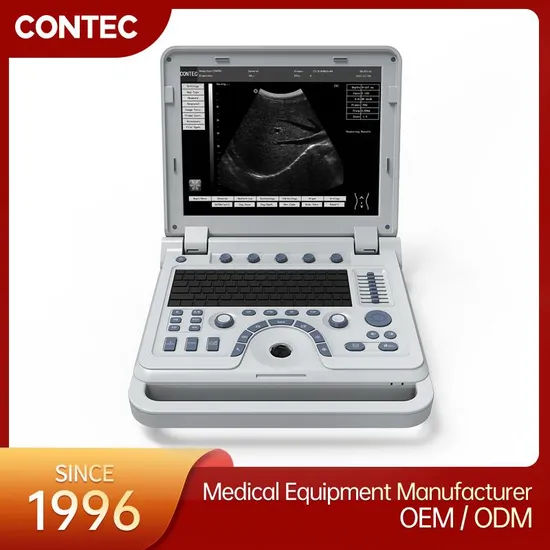

Contec Hospital Equipment Color Doppler Ultrasound Diagnostic System

Product Description

Product Description
Contec Hospital Equipment Color Doppler Ultrasound Diagnostic System
Features
1)Color Doppler (CF), color power Doppler imaging (PDI).
2)Pulse spectrum Doppler (PW),
3)Continuous wave Doppler (CW) .
4)B+CF (Dual Images)
5)B+CF/PDI/DPDI+PW (Triplex)
6)3D, 4D imaging.(optional)
7)Superior in phased array cardiac imaging technology, complete in software package of cardiac measurement function.
8)Convex array extended imaging.
9)Linear array deflection/ trapezoid imaging.
10)Anatomic M-mode imaging.(optional)
11)space compounding imaging
12)Tissue harmonic imaging (THI).
13)Contrast agent imaging.(optional)
14)Wide scene imaging.(optional)
15)Puncture enhanced.(optional) Performance
1)Display depth: ≥ 300 mm
2)Extended interface: VIDEO interface, S-VIDEO interface, RJ-45 interface, USB interface, VGA interface.
Safety
3)Type of protection against electric shock: class 1 equipment
4)Degree of protection against electric shock: type B applied part
5)Operating voltage: AC 100 V~240 V
6)Operating frequency: 50 Hz/60 Hz
7)Power consumption: ≤ 100 VA Accessories
One abdominal probe (3.5 MHz)
One User Manual
One power cord
One adapter Physical characteristic
Dimension: 370 mm (L) × 360 mm (W) × 80 mm (H)(main unit)
Weight: 6.5 kg

Standard Configurations
	Standard Hardware include:
	CMS1700B main unit
	15" High Resolution LCD color monitor
	Two transducer connectors
	Magnetic based monitor lock
	USB 2.0/ Hard Disk 128G
	Built-in Battery
	Adaptor
	Standard Software include:
	Imaging modes: B, B/B, 4B, B/M,CF, PDI, DPI, PW,B+CF,TSI, THI, iTHI, HPRF,B+PW (real-time double synchronization) ,B+CF/PDI/DPDI+PW (real-time triple synchronization) ,CW (B/C: HPRF, D: CW),Phased array probe
	Convex array extended imaging.
	Linear array deflection/trapezoid imaging, contrast imaging.
	Anatomic M-mode imaging.(Optional)
	Space compounding imaging
	Tissue harmonic imaging (THI).
	DICOM 3.0: Transmission/ Worklist/ Print/Storage Commitment
	M-Tuning: one button image optimization
Optional Modules
	TDI
	Color M-mode
	Anatomic M-mode
	Wide scene imaging.
	Contrast agent imaging
	3D
	4D
Optional Transducers
	TVS Probe (Transvaginal Probe)
	Linear Probe (7.5 MHz)
	Cavity Probe (Transrectal Probe )
	Phased array probe (Cardiac Probe)
	4D Volumetric convex array(Inlcude 4D Module)
Standard Accessories
	One abdominal Convex Array probe (3.5 MHz)
	One User Manual
	One power cord
	One adapter

Company Profile
FAQ
Q: Are you manufacturer or reseller? A: We are manufacturer who has more than 25 years experience on research & design, production and sale.
Q: Where your factory located in? How can I visit it? A: Our factory located in Qinhuangdao city, Hebei Province, P.R.China, about 2 hours by train from Beijing. We warmly welcome for your visiting!
Q: Do you support customization? such as provide box according to my design or print my logo on the gift box or device? A: Of course, we support OEM/ODM service. we can help design box according to your requirement. Moreover, we can also make mould to provide device with different appearance.
Q: How can i place an order? A: We support trade assurance order, you can place order directly or contact us to draft order and send you payment link; we can also issue invoice for you to pay by TT/Paypal/LC/Western Union etc.
Q: How many days for shipping after payment done? A: Sample order will be sent within 2 days after receiving sample fee. 3-20 days for general order according to the quantity. Customized order need mutual negotiation.

---
