Plastic Injection Molding Machine Hxm358-G Production of Fruit Box

US$40,492.00 1 Piece (MOQ)

Basic Info.

Model NO.
HXM358-G
Structure
Horizontal
Plastic Type
PS,ABS,PP,PE,HDPE,PA,EVA
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Voltage
380V/50Hz, According to Countries
After Sales Service
Engineers Avaiable to Service Machine
Injection Capacity in Theory
1709 Cm3
Injection Weight
1555 G
Moving Mould-Plate Stroke
660 mm
Space Between Tie Bar
720*670 mm
Transport Package
Standard Package
Specification
7.4*1.99*2.24 M
Trademark
Highsun
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year

Packaging & Delivery

Package Size
740.00cm * 199.00cm * 224.00cm
Package Gross Weight
11500.000kg

Product Description


1.Picture
2. Specifications
MODEL:HXM358-G
TECHNICAL PARAMETER TABLE A B C D
INJECTION UNIT SCREW DIAMETER mm 80
SCREW L/D RATIO L/D 19
INJECTION CAPACITY IN THEORY cm3 1709
INJECTION WEIGHT(PS) g 1555
oz 54.8
INJECTION PRESSURE MPa 140
INJECTION RATE g/s 544
PLASTICIZING CAPACITY g/s 80
SCREW SPEED rpm 160
CLAMPING UNIT CLAMPING FORCE KN 3580
MOVING MOULD-PLATE STROKE mm 660
MAX. MOULD HEIGHT mm 750
MIN. MOULD HEIGHT mm 250
SPACE BETWEEN TIE-BARS (W×H) mm 720*670
HYDRAULIC EJECTOR FORCE mm 134
HYDRAULIC EJECTOR STROKE KN 180
EJECTOR NUMBER n 13
OTHERS PUMP PRESSURE MPa 17.5
MOTOR /DRIVING POWER KW 38
HEATING CAPACITY KW 25
MACHINE DIMENSION (L×W×H) m 7.4*1.99*2.24
MACHINE WEIGHT t 11.7
OIL TANK CAPACITY L 680

3. Advantage
a. SUPER ENERGY SAVING
Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor willreduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%-80% of the power.
b. HIGH PRECISION AND HIGH STABILITY
Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality.
c. HIGH RESPONSE AND HIGH EFFICIENCY
The driving system responses with high sensitivity . It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency.

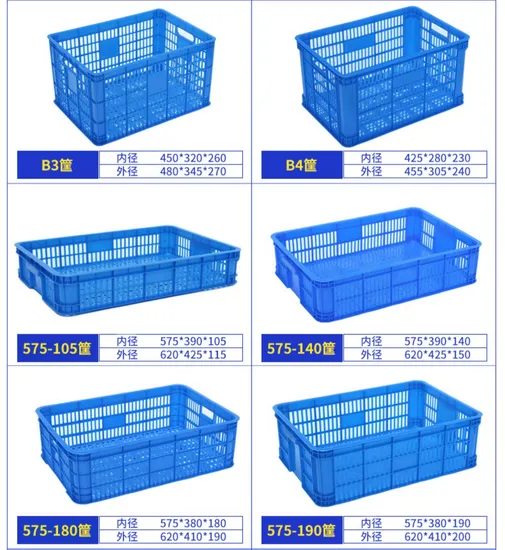

4. Product Produced by Injection Molding Machine
5. Factory
6. Company Introduction
China top 1 plastic injecion molding machine
a. Honored with "Top 3" manufacturer of comprehensive strength by NBPMA over the past decade.
b. Established in 1973. Concentrate on Injection Molding field more than 50 years.
c. It covers an area of 1.2 million square feet.
d. Sold to more than 40 countries around the world.
e. Annual output more than 7000sets,ensuring faster delivery time.
f. Worldwide sales reached 130 million US dollars, exports maintain steady growth.
