Tysim Km150 Long Boom Excavator Clamshell Telescopic Arm Excavator Telescopic Boom

Product Description

Technical Specification

Type	KM150	KM220	KM260
System	Hydraulic cylinder&Wire rope
Weight	3.6t	4.6t	5.6t
Bucket Capacity	0.3m³	0.6m³	0.9m³
Max. Digging Depth	15200mm	22490mm	27180mm
Max. Digging Radius(Reach Max. Digging Depth)	4670mm	5845mm	6400mm
Max.Vertical Digging Radius	6430mm	7445mm	8530mm
Max. Digging Depth(Reach Max. Vertical Digging Radius)	11825mm	19920mm	22370mm
Max. Operating radius	7950mm	9835mm	11250mm
Max. Hoisting Height	2870mm	4465mm	5770mm
Min. Operating Radius	3980mm	4485mm	5460mm
Max. Operating Height	9475mm	13580mm	16675mm
Weight of Bucket	520Kg	990Kg	12390mm
Recommended excavator capacity	≥15	≥23t	≥36t

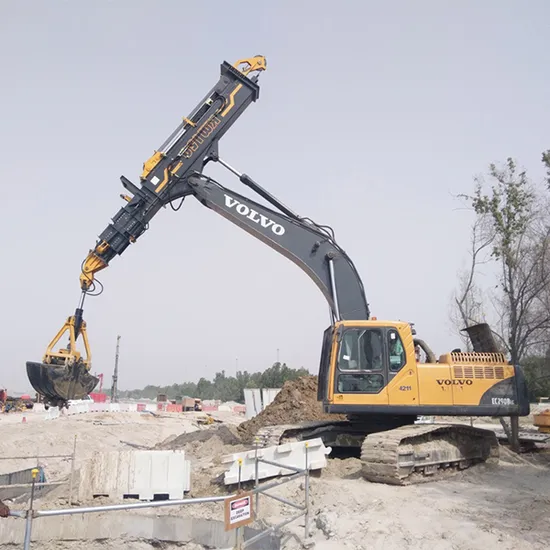

construction photos
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 7 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
FAQ
Q1: What is the Warranty of theClamshell Telescopic Arm?
The warranty period for new machine is half a year or 1000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.

---
