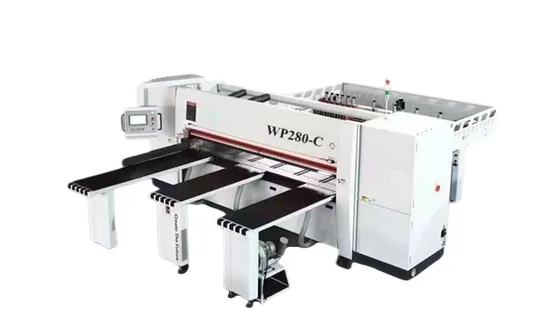

Wp Woodoworking Auto Reciprocating Panel Saw Machine Computer Saw Machine CNC Reciprocating Saw CNC Computer Beam Panel Saw

Product Description

The panel saw mainly used for processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

Movable table guide track is plating chromium steel balls structure, exact and durable.

Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.

With oxidation treatment, movable table surface is beautiful and hard-wearing.
Equipment parameters:
Product Name: Electronic Panel Saw;
Model: 280-C;
Origin: Shunde, Guangdong;
Product Category: WP;
Rated voltage: 380V;
Rated total power: 23.4KW;
Main saw power: 16KW;
Slot saw power: 2.2KW;
Traction servo power: 1.5KW;
Positioning servo power: 1.5KW;
Positioning method: automatic;
Positioning accuracy:+- 0.05mm;
Sawing accuracy:+- 0.05mm;
Maximum sawing length: 2800mm;
Maximum sawing width: 2800mm;
Maximum sawing thickness: 100mm;
Outer diameter of secondary saw blade: 180mm;
Inner diameter of secondary saw blade: 25.4mm;
High voltage air supply motor: 2.2KW;
Pneumatic floating platform: 3 positions;
Return speed: 0-100mm/min;
Main saw speed: 4800r/min;
Secondary saw speed: 6500r/min;
Main saw blade outer diameter: 400mm;
Main saw blade inner diameter: 60mm;
Material pressing method: pneumatic fixture;
Number of fixtures: 10;
Sawing speed: 0-100mm/min;
Operating pressure: 0.5-0.8MPa;
The height of the workbench from the ground: 890mm;
Installation size: 6050 * 5150 * 1900mm;
Weight: Approximately 4200KG

Product Name:	Electronic Panel Saw	Model:	280-C
Origin:	Shunde, Guangdong	Product Category:	WP
Rated voltage:	380V	Rated total power:	23.4KW
Main saw power:	16KW	Slot saw power:	2.2KW
Traction servo power:	1.5KW	Positioning servo power:	1.5KW
Positioning method:	automatic	Positioning accuracy:	+- 0.05mm
Sawing accuracy:	+- 0.05mm	Maximum sawing length:	2800mm
Maximum sawing width:	2800mm	Maximum sawing thickness:	100mm
Outer diameter of secondary saw blade:	180mm	Inner diameter of secondary saw blade:	25.4mm
High voltage air supply motor:	2.2KW	Pneumatic floating platform:	3 positions
Return speed:	0-100mm/min	Main saw speed:	4800r/min
Secondary saw speed:	6500r/min	Main saw blade outer diameter:	400mm
Main saw blade inner diameter:	60mm	Material pressing method:	pneumatic fixture
Number of fixtures:	10	Sawing speed:	0-100mm/min
Operating pressure:	0.5-0.8MPa	The height of the workbench from the ground:	890mm
Installation size:	6050 * 5150 * 1900mm	Weight:	Approximately 4200KG

Configure brand:

Main accessories			Main accessories
Name	Brand	Origin	Name	Brand	Origin
Axle bearing	KF	Malaysia	PLC	Yonghong	Taiwan
Towline cable	Xuanbang	Foshan	Servo motor	INVT	Shenzhen
Main cutting motor	Sanye	Fujian	Servo Driver	INVT	Shenzhen
Auxiliary cutting motor	Sanye	Fujian	Touch Screen	WECON	Xiamen
Gear Box	Zhou Yi	Zhejiang	Solenoid valve	EASUN	Ningbo
Precise orbit	TBI	Taiwan	cylinder	Don't	Zhejiang
Precision gear rack	BAI QIAN	Taizhou	Magnetic switch	SNS	Zhejiang
Precision gear rack	BAI QIAN	Taizhou	Proximity Switch	Yangming	Taiwan
High pressure fan	Songda	Foshan	Photoelectric switch	OMRON	Japan
Drive belt	Samsung	Italy	Button Switch	Kndeie	Zhejiang
Low Voltage Apparatus	snyder	Italy	Integrated intermediate relay	Panasonic	Japan
