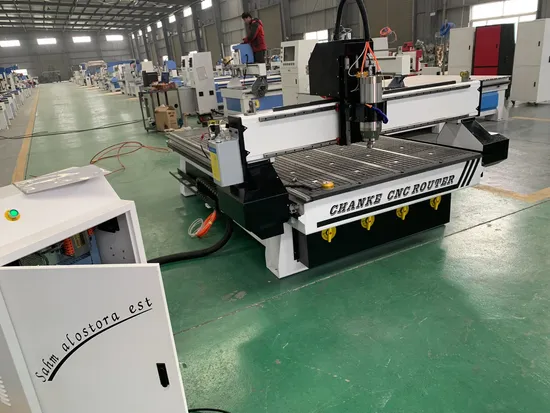

High Efficiency Woodworking Engraving Router

Product Description

Technical data

Brand	chanke
Model	CK1325 3D Wood router cnc
Machine Size (mm)(W*L*thickness)	1900*3100*1800
Table size(mm)	1600*3100
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.5KW water cooling spindle
Spindle Rotate(rpm)	6000~24000
Motor Driver	Stepper motor (Chinese servo motor or imported servo motor is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1500Kg

Features
1) T-slot Table: Ideal for small-scale processing with a material holder, eliminating the
need for a vacuum pump and reducing electricity consumption.
2) Water-cooled spindle: Offering high precision, extended lifespan, stable operation, and easy start-up.
3) Taiwan Hiwin linear square guide rail: Equipped with a self-lubricating sliding block, ensuring
consistent force in all directions, enhancing machine accuracy and strength.
4) Y-axis with dual-motor in-phase drive: Ensures smooth and uniform machine operation.
5) Sophisticated independent control cabinet: User-friendly interface and low-maintenance design.
Applicable materials for woodworking machine:
1) Furniture: Including plates, office furniture, doors, and cabinets.
2) Wood products: Such as speakers, game cabinets, computer desks, sewing machines,
and musical instruments.
3) Board processing: Suitable for insulation, plastic chemical components, PCB, car body,
bowling tracks, ABS, PP, PE, and more.
4) Decoration: Effective on acrylic, PVC, MDF, glass, plastic, and soft metals like copper
and aluminum.
How to Order Our Machine?
To recommend the best machine for your needs, please provide us with the following details:
1) What materials will you be working on?
2) What are the max dimensions (Length and Width) of your materials?
3) Do you primarily engrave or cut? For cutting, what is the maximum cutting thickness?
4) Are your materials cylindrical? If so, what is the maximum diameter?
5) If possible, please send pictures of your product samples. This will help us understand your needs better.
Trade Items of Machine

MOQ	1 set
Package	Standard Plywood Box
Delivery Terms	FOB, CIF, EXW, Door to Door ect.
Delivery Time	15 working days after receiving payment
Payment Type	T/T, Paypal, Western Union and others
Supply Ability	50 sets/month
Port	Qingdao, China.

Packing of Machine
Water-proof plastic film packaging with foam protection at each corner.
Solid seaworthy wooden box with steel belt for added security.
Optimized to save space for container loading.
Guarantee & Service of Machine
Guarantee:
Two-year quality guarantee. Main parts (excluding consumables) will be replaced free of charge if any issue occurs during the warranty period.
Service: (Providing lifelong technical support, available 24/7 online)
Before sale:
We are always available to provide any information you need promptly and offer professional suggestions tailored to your needs, free of charge.
During sale:
We handle all production and shipping affairs and will keep you updated once everything is ready.
After sale:
1) We provide an English version of the working manual.
2) Our engineers, proficient in English, will assist you online or by phone with any questions during use and maintenance.
3) The machine warranty is one year. We will provide free parts for any unintentional damages.
4) In the unlikely event that your machine encounters significant issues, our highly skilled engineers will promptly travel to your location to diagnose, debug, and resolve any problems.
5) Remote control support is available upon request, ensuring that any technical difficulties can be swiftly addressed from a distance, minimizing downtime and maximizing efficiency.

---
