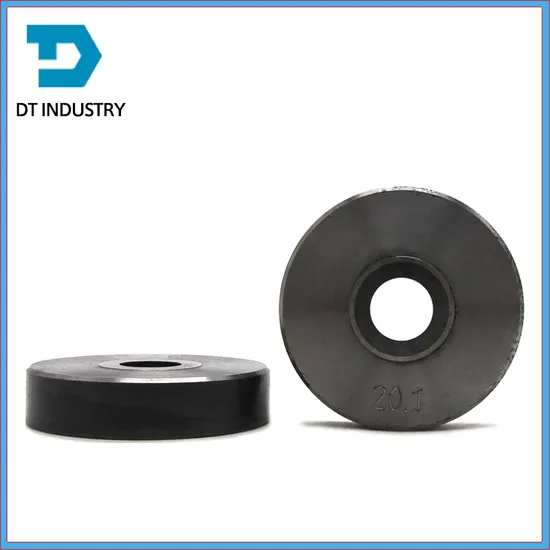

20.1mm Yg6 Tungsten Carbide Peeling Die

Product Description

Product Description
Skinning die is used to strip the oxidizing layer, stolen goods or other coatings on the surface of copper, aluminum, steel and other materials, also known as peeling die and planing die.
It is required that the cutting edge of the mold is sharp, can not break the edge, and can withstand a certain impact. Its working principle is similar to turning.
According to different materials, the mold cutting edge Angle and structure are different, the higher the hardness of the material, the smaller the 0 Angle. The height and width of the cutting edge of the mold are required to be consistent during manufacturing.

YG6 TUNGSTEN CARBIDE PEELING DIE

Grade No.	Density g/cm3	T.R.S HP	Hardness HRA	Performance & Application
YG6	14.9	2150	90	High performance, it is used for cast iron, non-ferrous metal and its alloy and non-metallic materials processing tools, parts, but also can be used for other tools with alloy.

------WELCOME TO CUSTOMIZE-----

Product Parameters

Grade No.	Density g/cm3	T.R.S HP	Hardness HRA	Performance & Application
YG6	14.9	2150	90	High performance, it is used for cast iron, non-ferrous metal and its alloy and non-metallic materials processing tools, parts, but also can be used for other tools with alloy.
YG8	14.7	2400	89.5	With higher strength, lower than YG6, suitable for making parts.
YG11	14.4	2420	88.5	Suitable for all kinds of metal and non-metal powder molding and stamping.
YG15	14	2500	87.5	Suitable for drawing steel bar and steel pipe under high compression rate. Top forging, punching and stamping tools that work under high stresses
YG20	13.5	2800	85.5	Suitable for making stamping die. Such as stamping watch parts, musical instrument spring, etc.; Die for punching battery case and tooth paste; Stamping die for small size steel balls, screws, nuts, etc.
YG16C	13.9	2750	85.5	Suitable for general impact resistance forging die.
YG18C	13.7	2800	84.5	Suitable for general impact - resistant forging die, hot heading die and finishing roll.
YG20C	13.5	2850	83.5	Suitable for general damage, impact resistance mold.
YG22C	13.3	2900	83	Suitable for general impact resistant die and nut forming die.
YG25C	13.1	2950	82.5	Suitable for stainless steel screw die, semi - finished roll.

Main features
1. Peeling die or peeling mold:
6mm-70mm carbide peeling die can be customized with long life, good consistency, high wear resistance and impact resistance.
2. No blasting:
The content of 99.95% or more pure raw material tungsten powder as the main raw material, impurity content is very low, no blasting mold.
3. Long service life:
The raw material adopts the single-family formula process, adding wear-resistant elements material, the service life of the leather mold is greatly improved.
4. Lower processing cost:
The product pass circumference is correct, the overall dimension tolerance is small, and the processing cost is lower.
Fast delivery: all kinds of molds complete, rapid production cycle. Hot products

Our Advantages
Making tungsten steel mold based on your drawing or your finished products' size.
Inspecting, packing, uploading and shipping service;
Offering all related auxiliary machines, spare parts and consumable tools;
Installing and adjusting machines on site and technology training your labors for operation;
Trial production on site till everything is going well;
On-site technology support if customer needs.
24 hours service online before sales and after sales.
Company Profile
Guangzhou DT Exp. & Imp. Co. Ltd is established in 2012. We are mainly manufacturing machines for non-ferrous metal production.
The main machines are electric melting furnace, holding furnace, continuous casting machine, cutting machine, peeling machine, chamfering machine, drawing machine and, straightening machine. And rolling equipment for steel and brass and copper strip.
Also we are supplying Graphite products for non-ferrous continuous casting production line and tungsten steel mold for extrusion and drawing and peeling production line.
We have a professional and passionate service team, including research and development department, technology support department and international after sales service department.
Our advantages: Qualified Machines; Professional technology, Efficient Service, Worry-free Guarantee.
Our Values: Products as the fundamental, Customers as the center, Create a win-win situation.
