Hanyoo Yk-90 Oscillating Granulator Ceramic Plastic Solid Beverage Pellets Pendular Granulator Granulating Machine for Fertilizer

US$1,000.00-1,300.00 1 Piece (MOQ)

Basic Info.

Model NO.
YK-90
Type
Medicine
Object
Granulator
Material
Stainless Steel
Size
Large
Certification
GS, CE, ISO 9001
Condition
New
Product Name
Pendular Granulator
Machine Body
304 Stainless Steel
Hobbing Cutter Diameter(mm)
60-160
Hobbing Cutter Rotation Speed(R/Min)
46-65
Production Capaity (Kg/H)
20-600
Weight(Kg)
53-600
Transport Package
Plywood Box
Specification
GMP
Trademark
Hanyoo
Origin
China(Mainland), Jiangsu
HS Code
8422400000
Production Capacity
100sets/Year

Packaging & Delivery

Package Size
50.00cm * 40.00cm * 54.00cm
Package Gross Weight
53.000kg

Product Description

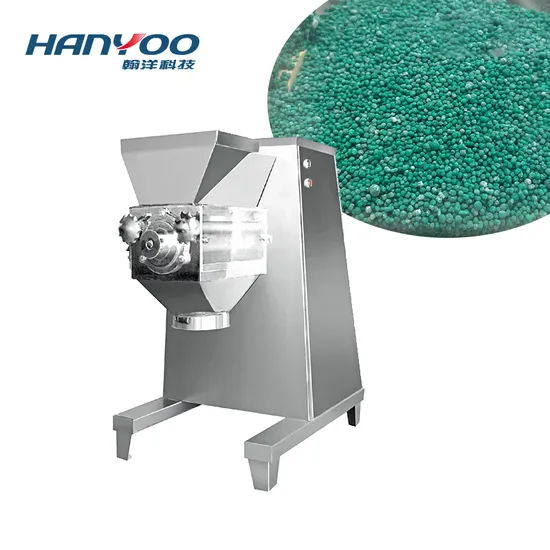

YK-60/90/160 PENDULAR GRANULATOR Product Introduction
MACHINE INTRODUCTION This machine is mainly for pelletizing moist powder, and also fr smashing dry blocks into granulaters. It's convenient to dismantle and assemble for users. MACHINE FEATURES This machine makes use of the rolling motion of rotating barrel, granulates the wet powder materials into granule by sieve, it also can be directly used to crush the agglomerate material into small granule. In chemical medicine field, it can be used to granulate the mixed powder into granule, and compressed granule into tablet after being dried. It also can be used to granulate the coagulat material that was formed during storage or during chemica processing. In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products. In other industries, it can be used to granulate such as porcelain and plastic mixtures into forming granules. Technical Parameter
Model YK-60 YK-90 YK-160
Hobbing cutter diameter(mm) 60 90 160
Hobbing cutter rotation speed(r/min) ±46 ±50 ±65
Hopper dimention(W*D)(mm) 200×150 300×280 350×600
Production capaity (kg/h) 20-25 30-100 40-600
Motor (KW) 0.37 0.75 5.5
Overal size (mm) 500×400×540 750×460×840 780×980×1395
Weight(kg) 53 100 600
