US$3,000.00-3,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Certification
CE, RoHS, ISO 9001
Distance From Spindle Nose to Table
80-480mm
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Production Capacity
100 PCS/Month
Product Description
Products Description:

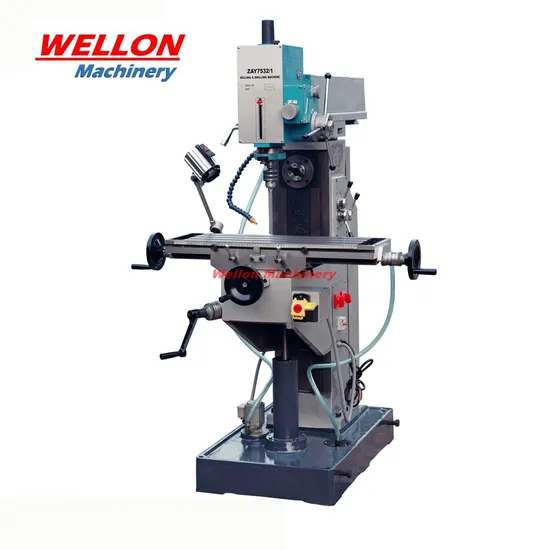

Universal Drill Mill Machine ZAY7540/1 Mill Drill Machine price
Performence Features:
Vertical milling head can be moved forward or backward
Vertical milling head can swivel 90 vertically and 360 horizontally.
Adjustable atops on table
Manual quill feed
High tensile casting iron elevative table
Double motor with powerful force Technical parameter:
| MODEL | ZAY7540/1 |
| Max.drilling capacity | 40mm |
| Max.milling capacity (end / face) | 32/100mm |
| Swivel angle of headstock | ±90° |
| spindle taper | M.T.4 |
| Distance from spindle nose to table | 80-480mm |
| spindle travel | 130mm |
| Arm travel | 500mm |
| step of spindle speed(end/face) | 6\12 |
| range of spindle speed(end/face)50Hz | 90-1600 /38-1280r/min |
| 60Hz | 110-1920 /45-1540 |
| Step of spindle auto-feed | 3 |
| Range of spindle auto-feed | 0.12 0.18 0.25 |
| Worktable size | 800×240mm |
| X axis travel | 300mm |
| Y axis travel | 585mm |
| Z axis travel | 400mm |
| Distance from spindle axis to column | 290mm |
| Power(end/face) | 1.1/1.5KW |
| Cooling pump power | 0.04KW |
| N .W/G.W | 933/1033kg |
| Packing size | 1020×1350×1850mm |
Standard Accessories:
Allen Wrench
Wedge
Tie Rod
Some tools
Optional Parts:
Drill Chuck
Milling Cutter Holder
Mill Chuck
Auto power feed
Machine Vice
Work lamp
Coolant system
Collets chuck
Machine Stand and Chip Tray
3 Axis Digital Read out
