The Most Popular Sinotruk Chassis Cement Pump Truck Boom Stable Configuration, 38 Meters High, Rear Double Axle

Product Description

Product Description

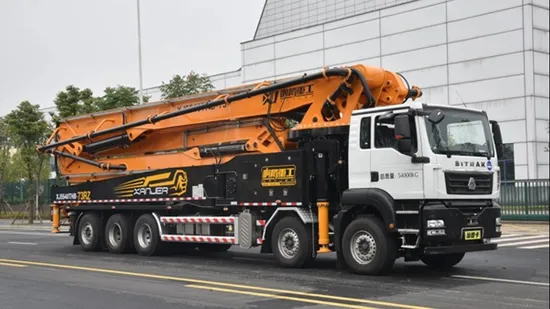

Sinotruk chassis concrete pump truck
This product is a high-end truck brand built by China National Heavy Duty Truck and foreign advanced automotive technology platforms. The chassis of the concrete pump truck adopts advanced manufacturing equipment, most of the accessories are the original suppliers of MAN company, and the product design, assembly process, production management, experimental verification and product release are completely adopted by German standards, and the quality is comparable to that of imported cars, which is a strong guarantee for the reliability of the vehicle. The chassis is highly malleable, provides a "plug and play" body interface, can be seamlessly connected with the body, and matches the MAN technology engine transmission (with cooler) + MAN technology rear axle, which provides ultra-reliable power for the body while meeting the requirements of the harsh working environment of the pump truck. Detailed Photos

* Large diameter, large displacement pumping system.
* The material absorption can reach more than 85%.
* Effectively reduce emissions and reverse, fragility and longer life.
* The pumping system adopts electronically controlled reversing, which is faster and has less impact on the system.
*The actual pumping efficiency is more than 5% higher than that of the traditional hydraulic control reversing system.


Product Parameters

Product name	Concrete pump truck
Announcement model	ZLJ5440THBKF
Pumping displacement	180 m²/h
Maximum pumping height	63m
Vehicle weight	43.87 t
Drive form	4*4/6*4/8*4
Vehicle size	13.804*2.55*4m and other
wheelbase	1950+5725+1350mm and other
Maximum travel speed	90km/h
Engine model	SINOTRUK MC11.44-50
Maximum output power	324kW
Maximum horsepower	440 hp
Rated speed	1900rpm
Displacement	10.518L
Type of fuel	diesel fuel
Pumping Displacement (Low/High Pressure)	180 m²/h
Number of Pumping Cycles (Low/High Pressure)	26 times/min
Conveyor cylinder: inner diameter × stroke	Φ260×2100mm
Tire specifications	385/65R22.5/315/80R22.5,385/65R22.5/12.00R20

Please note:
Different specifications of concrete pump trucks can be customized according to your needs, please contact us.

Company Profile


Visit the deal


Our Advantages
A: Our company has been selling trucks for 11 years, understanding customer usage scenarios, and being able to accurately match vehicles based on customer operational scenarios to maximize customer revenue.
B: Our company has a wide range of products, including micro trucks, light trucks, heavy trucks, dump trucks, and specialized vehicles, to meet customers' one-stop procurement needs.
C: We have a professional truck sales team that conducts thorough research on vehicle configuration and performance, and can provide customers with clear answers to any professional questions.


Packaging & Shipping
1. Container: fast sending, fast arrival, safe and economical.
2. Frame boat: suitable for two tractor heads, fast delivery time.
3. Bulk ship: cheap ocean cost, safe, time is a bit slow.
4. Ro-Ro ship: fast delivery time, safe goods, a bit high cost.
Fast sending, fast arrival, safe and economical

FAQ
Q1.What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
A: Generally, it will take 20 to 30 days after receiving your advance payment.

Q4.What is the warranty?
A:You can always enjoy technical support by phone or email. We will provide timely solutions.

Q5. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

---
