Bottle /Cans /Bags /Card Small Character Expiry Date Inkjet Printer

Product Description

Bottle /Cans /Bags /Card Small Character Expiry Date Coding Inkjet Printer
Model: PM-100B Contact:Candy >> Coding Inkjet printer description:

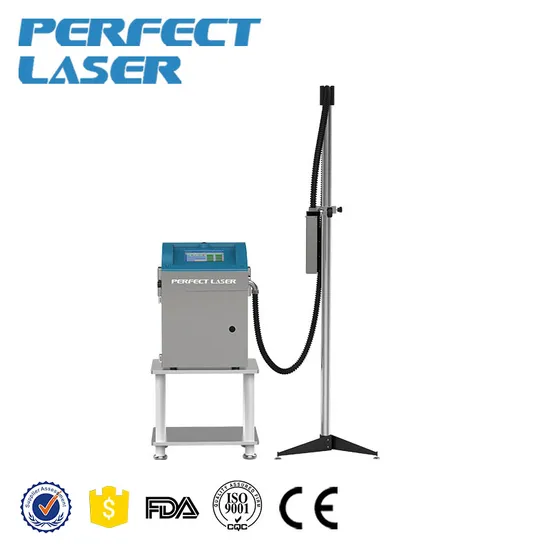

PM-100 coding inkjet printer is a kind of fast, reliable, non-contact continuous ink printer. It can spray in most objects with online printing of all needed data .The printing data of this continuous inkjet printing machine can be time, date, production code, bar code, the two dimension code, consumption information, or manufacturer's LOGO, product tracking information and other data, and so on.

Model	PM-100B
Fuselage	Stainless steel 304, surface process
Voltage	220V±20% 50HZ 100VA
Pressure	Normal operation under pressure up to 4.48bar, under the fault conditions as high as 6.2bar.
Nozzle size	38*170.1mm
Spraying distance	Trumpet: 3.5mm Medium: 10mm spray nozzle
Jet printing speed	2m/s (5 * 7 dot matrix)
Jet printing dot matrix	32 * 140 in any dot matrix, digital, Chinese characters, letters, charts, etc.
Spray into the number	1-4 lines, can be sprayed 34 lines of 1 points high pattern, or four lines of 7 points, or 6 lines of 5 points high character.
Character height	Minimum character height of 1.1mm, maximum height of 11.2mm, up to 24 points
Meter function	Arbitrary unit meter
Adapted ink	Red, black, blue, green, yellow, high adhesion, high temperature, invisible ink, etc. (this machine can not use the pigment ink)
Ink value consumption	500ml printing (5 * 7 dot matrix digital) about 60,000,000 dot matrix
Temperature	-5ºC--45ºC
Humidity	50--80RH% No dew
Spray printing function	Bold characters up to 9 times, characters with rotating function: spray print height, width and delay can be automatically adjustable frequency, date, and time between the word format: fixed and variable text, size, can write character in real time clock function, can jet printing to seconds; USB pattern call / ink jet printer data, backup parameters reduction function / software system upgrade; features a serial number, with hexadecimal counting function a lot number and the counting function, reverse jet printing function, timing functions; date and event format options for a flexible, automatic date calculation.

>> Coding inkjet printer Application Fields:
Perfect Laser's coding inkjet printer is widely used for paper printing, glass bottles printing, plastic bottles printing, metal printing, medicine box printer, plastic bags printing, cartons printing, paper bags printing, electronic products printing, labels printing, nylon printing, ABS/PVC/PC printing, rubber printing, resin printing, ceramic printing, etc.
Distinguishing features of the product: Enable to keeping developing.
Advanced software: meet various requirements of production when modify the software.
Specialization: professional software engineers have solved the problems that could happen, and through the deep research, the modular circuit and hydro-system with low power and high level of integration hardware has been designed. Select the best fittings from all over the world. Power supplies are offered by the most famous manufactures who supplied to the aviation in China, pumpsare made in Germany, the electrical chips are supply by Phillips and the pipelines are imported from Switzerland.
