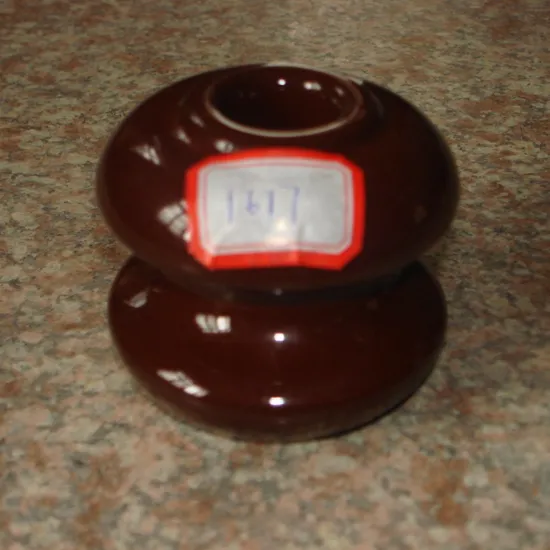

BS Class ED-2 (C) , ED-2 (B) , ED-2 (B) 1, R-6, 1617 Shackle Insulators

Product Description

Shackle insulators are used at the end of low voltage distribution lines or at sharp turns where there is excessive
tensile load on the lines. Our shackle insulators are designed, manufactured and tested in accordance with BS
standard for ensuring a good quality.

Material: porcelain
Color:brown or light gray
Standard:BS
Drawing
Basic Data

BS class		ED-2(C)	ED-2(B)	ED-2(B)1	R-6	1617
Dimensions, mm	H	80	76	76	80	65
	D	80	89	89	70	76
	d	50	48	48	40	46
	d1	22	21	17.5	18	17.5
	R	6	10	10	7	9
Mechanical failing load	kN	13.2	12.7	12.7	8.9	9.2
Power frequency flashover voltage	Dry, kV	25	25	255	12	20
	Wet, kV	12	12	12	15	9
Net weight	Each, Approx., kg	0.5	0.5	0.5	0.4	0.4

Why Choose Ziyong Technology Professional operation experience. Free sample are available. All size can be customised. Safe packaging. Prompt delivery. The reasons of choosing insulation piecring connector 1. Simple installation 2. Safe use 3. Economical Cost 4.High applicability FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.
2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.
3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment. Service Choose our products! You'll get 1) Good quality guarantee (2 years) 2) Factory direct prices 3) On time delivery 4) Free sample 5) Professional technology support Strict quality controls have been taken to ensure that you'll get reliable products. a. Material checks before production. b. Random inspection during production. c. Inspection before the shipment. Our products fully comply with well recognized standards such as IEC, BS, ANSI.

---
