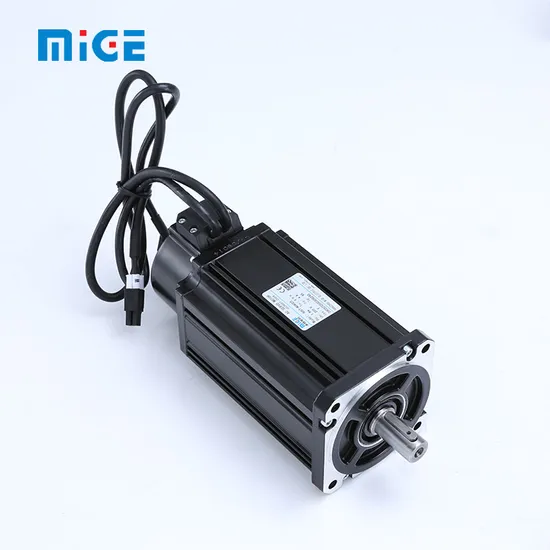

1kw NEMA34 4nm 2500rpm Servo Motor for Sewing Macjhing or Packaging Machine

Product Description

1kw Nema34 4Nm 2500rpm servo motor for sewing macjhing or packaging machine

Product Description. Specifications(90 series servo motor)

Motor model	90ST-M04025
Rated power(W)	1000
Rated voltage(V)	220
Rated current(A)	4
Rated speed(rpm)	2500
Holding torque(N.m)	4
Peak torque(N.m)	12
Voltage constant(V/krpm)	12
Torque coefficient(N.m/A)	1.0
Rotor inertia(Kg.m²)	3.7×10-4
Phase Resistance(Ω)	2.69
Phase Inductance(mH)	6.21
Machanical time-constant(Ms)	2.3
Weight(Kg)	4.2
Encoder line number(PPR)	2500
Insulation class	Class F
Safety class	IP65
The operating of Environmental Conditions	Temperature: -20 ~ +50 Celsius degree Humidity: Below 90%RH No dewing

Installation Dimension:unit=mm

Model	Without brake	With permanent Magnet brake	With eletromagntic brake
90ST-M01330	150	207	198
90ST-M02430	172	229	220
90ST-M03520	182	239	230

Manufacture Equipment

Testing Equiment

Products Functions
Mige electric motors are widely used in the following industries
Company Information.

Brief Introduction

Hangzhou Mige Electric Co. Ltd. was founded in 2005. It is a national high-tech company,focusing in the research,development,production and sales of AC servo motor,hybrid stepper motor and driver for the global market.They have been widely used in the fields of embroidered textile,CNC machine,packaging,printing, engraving, robots and other automation equipment.

Company certification and honor





Packaging & Shipping


FAQ.

1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
A: Our products are manufactured according to your order except the normal products.
3. Q: What's the delivery time?
A: I t usually takes about 7 working days, but the exact delivery time might be different for different order or at different time.
4. Q: Can I choose the different brake to the motors?
A: Yes, you can choose the different kinds of brake or without brake.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. Miger people always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
6. Q:What's your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
7. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Miger has been Gold supplier since 2008. If you check with , you will see that we have never got any complaint from our customers.

---
