Pneumatic Rocking Arm Loader for Laser Cutting: Safe, Efficient Material Handling

Product Description

Specification: (support customerized size)
Product Model : XDL-100B3M
Jib Column Size : 3300x219x6mm
Rokcer Beam Size: 4000x22mm
Suction Cup Equipment Size: 2000x1000mm
Cylinder Size: 1000x125mm
Color : Red/Orange/Blue/White etc
Working Area: 0~3200mm
Stroke Lifter: 1100mm
Rocker Arm Rotation: 0~270°
Max Steel Plate Size: 1500mm*3000mm/4000x2000mm(customerized size)
Application: Steel plate/aluminum plate/plastic plate/glass plate/stone plate/laminated particle board
Moving and Lifting

Pneumatic Tpye Vacuum Lifter
Model	Carne	Rocker Arm	Strok	Capacity	Max Workpieces	Air Pressure	Suction Pad (pcs/dia)
XDL-L100-B3M	3300mm	3000mm	100~1100mm	100kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L100-B4M	3300mm	4000mm	100~1100mm	100kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L300-B3M	3300mm	3000mm	100~1100mm	300kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L300-B4M	3300mm	4000mm	100~1100mm	300kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L500-B3M	3300mm	3000mm	100~1100mm	500kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L500-B4M	3300mm	4000mm	100~1100mm	500kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm

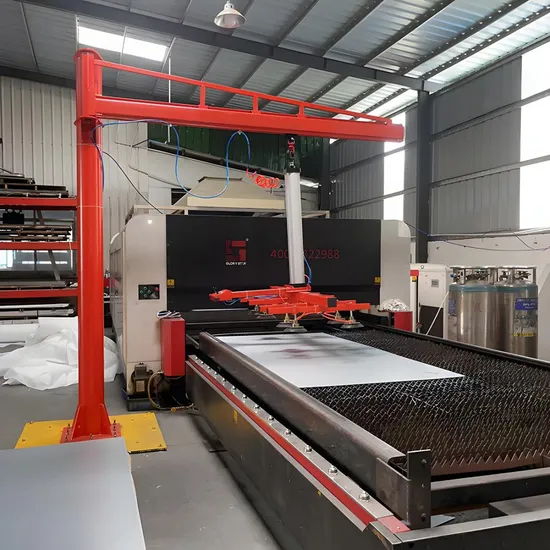

The Pneumatic Laser Cutting Loading Machine is an industrial automation solution designed for efficient material handling in laser cutting processes. This machine is engineered to handle heavy materials with precision and safety, ensuring a seamless integration with various laser cutting systems. With a CE certification, it meets international safety standards, making it suitable for export to European markets.

Usage scenarios:lifting operations in different occasions such as open-air warehouses, material yards, railway cargo stations, port terminals, indoor workshops, etc.


*They all adopt high-quality structures/reinforced structures with stronger support/bearing capacity. Strong and durable!*Thickened steel pipe, overall welding, thick and reinforced welding points!

Easy to use,Simple operation, improve efficiency. Minimization of downtime dut to employee injury. Increase in employee motivation. Only one person for handling.
How to choose a rocker arm lifter?
lWhat are you going to lift, size and weight of the workpiece? lWhat are you going to do with your workpiece? To load and unload punching machines, bending machines or CNC laser cutting systems?
lWhat's the minimum working space/radius, plant height of your workshop?
What's the subgrade situation of your workshop? lWhich model are you prefer to use, pneumatic or electric type?
SECURE:Our machine employs vacuum technology to securely grip materials without causing any damage. EASY TO USE: Designed for simplicity, this machine enhances workflow efficiency and minimizes down time due to workplace injuries. It also boosts employee morale as it requires only one operator to handle the process. WIDE APPLICATIONS Ideal for the rapid and frequent movement of a variety of workpieces, including stone plates, glass, metal, aluminum, PVC, and acrylic sheets.
12 MONTHS: We offer a comprehensive 12-month warranty and round-the-clock service support. *MULTIPLE The machine is adaptable to various energy sources, with both plug-in and pneumatic options, making it suitable for a wide range of working environments. *MAX 500KG : With a maximum capacity of 500kg, this machine is capable of handling both light and heavy workpiece loading and unloading tasks efficiently.
The main components are produced by internationally renowned brands, and the quality is guaranteed.1. Manual valve: The original imported SNS hand valve is used to control the elevator, which is convenient and accurate in controlling the position.
2. Cylinder: Purchase imported AirTac professionally designed Milan to prevent operating shock and freely control the suction cup switch.
3. Load-bearing pulley: This product is our company's race pulley, which is safe for lifting operation and can safely load 100/300/500kg.


We usually quote within 24 hours after we get your inquiry. -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote. -It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity. -1. We keep good quality and competitive price to ensure our customers benefit ; -2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Maintenance and maintenance of pneumatic rocker arm booster: The mechanical components and control system of the equipment shall be maintained and maintained regularly. Before performing maintenance work and enter the operating area of the booster, ensure that the air,The pressure source is turned off and the air source connector is removed.

---
