Pelton Turbine/Hydro Turbine/Water Turbine

Product Description

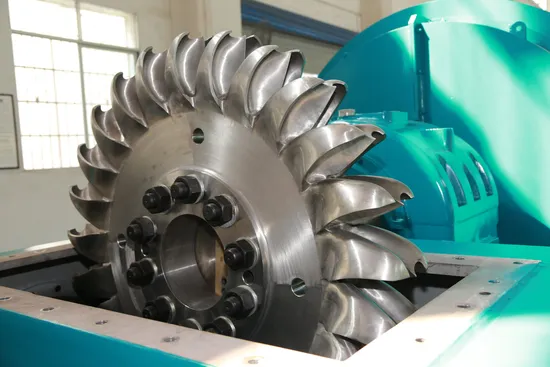

L. A Pelton invented the Pelton turbine (also known as the free-jet turbine, or the Pelton wheel) in 1880. It is a type of impulse turbine. In a Pelton turbine, water passes through nozzles and strikes buckets or cups arranged near a runner. This in turn causes the runner to rotate, thus producing mechanical energy. The runner is fixed on a shaft, and the motion of the turbine is transmitted by the shaft to a generator.
Their compact structure, small size, high efficency, and lesser need for investments, make them the best choice for high head and small discharge hydraulic power resources. Pelton turbines generally have lesser production cost compared to Francis and Kaplan turbine.
Fuchun's manufacturing is ever-reliable due to its experience and innovation of knowledge. A variety of choices are given to choose from.
The impulse type turbines Fuchun Industry has manufactured can range from 80 to 1000m in water head, 68 kW to 20MW in capacity, and 0.55 to 3.2m in runner diameter. Their shaft arrangements can be horizontal or vertical, and they may have single nozzle, twin, or multi nozzles. Fuchun Industry also puts extra R&D investment onto qudra-nozzle impulse turbine, for it is easy to install and adaptable to a wide range of water flow.
Discuss the pelton turbine solution with us before you make any purchases of the pelton turbine, we will make it worthwhile.

Hydro turbine					Generator			Speed governor	Type of Vaive
Type	Design Head(m)	Design Flow (m³ /s)	Power (kW)	Rated Speed (r/min)	Type	Rated Power (kW)	Rated Voltage (v)
CJA237-W55/1× 5.5	123	0.105	111	750	SFW100-8/590	100	400	Manual/ electrical	Z941H25 DN250
CJA237-W55/1× 5.5	166	0.124	178	1000	SFW160-6/590	160	400		Z941H25 DN250
CJA237-W55/1× 5.5	192	0.134	222	1000	SFW200-6/740	200	400		Z941H40 DN250
CJA237-W55/1× 5.5	224	0.145	278	1000	SFW250-6/740	250	400		Z941H40 DN250
CJA237-W55/1× 6	110	0.117	111	750	SFW100-8/590	100	400		Z941H16 DN250
CJA237-W55/1× 6	172	0.166	222	1000	SFW200-6/740	200	400		Z941H25 DN250
CJA237-W55/1× 6	200	0.161	278	1000	SFW250-6/740	250	400		Z941H40 DN250
CJA237-W55/1× 6	235	0.177	356	1000	SFW320-6/850	320	400		Z941H40 DN250
CJA237-W55/1× 7	103	0.156	139	750	SFW125-8/590	125	400		Z941H16 DN250
CJA237-W55/1× 7	122	0.169	178	750	SFW160-8/740	160	400		Z941H25 DN250
CJA237-W55/1× 7	163	0.198	278	1000	SFW250-6/740	250	400		Z941H25 DN250
CJA237-W55/1× 7	190	0.216	356	1000	SFW320-6/850	320	400		Z941H40 DN250
CJA237-W55/1× 7	222	0.231	440	1000	SFW400-6/990	400	400		Z941H40 DN250
CJA237-W70/1× 5.5	142	0.115	139	750	SFW125-8/590	125	400		Z941H25 DN250
CJA237-W70/1× 5.5	263	0.158	356	1000	SFW320-6/850	320	400		Z941H40 DN250
CJA237-W70/1× 5.5	302	0.167	440	1000	SFW400-6/990	400	400		Z941H40 DN250
CJA237-W70/1× 5.5	352	0.182	550	1000	SFW500-6/990	500	400		Z941H64 DN250
CJA237-W70/1× 7	141	0.230	278	750	SFW250-8/850	250	400		Z941H25 DN250
CJA237-W70/1× 7	257	0.250	550	1000	SFW500-6/990	500	400		Z941H40 DN250
CJA237-W70/1× 7	296	0.268	685	1000	SFW630-6/990	630	400		Z941H40 DN250
CJA237-W70/1× 7	340	0.294	860	1000	SFW800-6/1180	800	400		Z941H64 DN250
CJA237-W70/1× 7.5	311	0.319	860	1000	SFW800-6/1180	800	400		Z941H64 DN300
CJA237-W70/1× 7.5	360	0.378	1075	1000	SFW1000-6/1180	1000	6300		Z941H64 DN300
CJA237-W70/1× 9	158	0.327	440	750	SFW400-8/990	400	400		Z941H25 DN300
CJA237-W70/1× 9	183	0.352	550	750	SFW500-8/990	500	400		Z941H25 DN300
CJA237-W80/1× 5.5	405	0.195	685	1000	SFW630-6/990	630	400		Z941H64 DN250
CJA237-W80/1× 7	391	0.315	1075	1000	SFW1000-6/1180	1000	6300	CWT/1	Z941H64 DN250
CJA237-W80/1× 7	447	0.346	1344	1000	SFW1250-6/1180	1250	6300	CWT/1	Z941H64 DN250
CJA237-W80/1× 9	209	0.380	685	750	SFW630-8/1180	630	400	CWT/1	Z941H40 DN350
CJA237-W80/1× 9	244	0.411	860	750	SFW800-8/1180	800	400	CWT/1	Z941H40 DN350
CJA237-W90/1× 5.5	468	0.211	860	1000	SFW800-6/1180	800	400	CWT/1	Z941H64 DN250
CJA237-W90/1× 5.5	540	0.230	1075	1000	SFW1000-6/1180	1000	6300	CWT/1	Z941H100 DN250

Hydro turbine					Generator			Speed governor	Type of Vaive
Type	Design Head(m)	Design Flow (m³ /s)	Power (kW)	Rated Speed (r/min)	Type	Rated Power (Kw)	Rated Voltage (v)
CJA237-W55/1× 5.5	123	0.105	111	750	SFW100-8/590	100	400	Manual/ electrical	Z941H25 DN250
CJA237-W55/1× 5.5	166	0.124	178	1000	SFW160-6/590	160	400		Z941H25 DN250
CJA237-W55/1× 5.5	192	0.134	222	1000	SFW200-6/740	200	400		Z941H40 DN250
CJA237-W55/1× 5.5	224	0.145	278	1000	SFW250-6/740	250	400		Z941H40 DN250
CJA237-W55/1× 6	110	0.117	111	750	SFW100-8/590	100	400		Z941H16 DN250
CJA237-W55/1× 6	172	0.166	222	1000	SFW200-6/740	200	400		Z941H25 DN250
CJA237-W55/1× 6	200	0.161	278	1000	SFW250-6/740	250	400		Z941H40 DN250
CJA237-W55/1× 6	235	0.177	356	1000	SFW320-6/850	320	400		Z941H40 DN250
CJA237-W55/1× 7	103	0.156	139	750	SFW125-8/590	125	400		Z941H16 DN250
CJA237-W55/1× 7	122	0.169	178	750	SFW160-8/740	160	400		Z941H25 DN250
CJA237-W55/1× 7	163	0.198	278	1000	SFW250-6/740	250	400		Z941H25 DN250
CJA237-W55/1× 7	190	0.216	356	1000	SFW320-6/850	320	400		Z941H40 DN250
CJA237-W55/1× 7	222	0.231	440	1000	SFW400-6/990	400	400		Z941H40 DN250
CJA237-W70/1× 5.5	142	0.115	139	750	SFW125-8/590	125	400		Z941H25 DN250
CJA237-W70/1× 5.5	263	0.158	356	1000	SFW320-6/850	320	400		Z941H40 DN250
CJA237-W70/1× 5.5	302	0.167	440	1000	SFW400-6/990	400	400		Z941H40 DN250
CJA237-W70/1× 5.5	352	0.182	550	1000	SFW500-6/990	500	400		Z941H64 DN250
CJA237-W70/1× 7	141	0.230	278	750	SFW250-8/850	250	400		Z941H25 DN250
CJA237-W70/1× 7	257	0.250	550	1000	SFW500-6/990	500	400		Z941H40 DN250
CJA237-W70/1× 7	296	0.268	685	1000	SFW630-6/990	630	400		Z941H40 DN250
CJA237-W70/1× 7	340	0.294	860	1000	SFW800-6/1180	800	400		Z941H64 DN250
CJA237-W70/1× 7.5	311	0.319	860	1000	SFW800-6/1180	800	400		Z941H64 DN300
CJA237-W70/1× 7.5	360	0.378	1075	1000	SFW1000-6/1180	1000	6300		Z941H64 DN300
CJA237-W70/1× 9	158	0.327	440	750	SFW400-6/990	400	400		Z941H25 DN300
CJA237-W70/1× 9	183	0.352	550	750	SFW500-8/990	500	400		Z941H25 DN300
CJA237-W80/1× 5.5	405	0.195	685	1000	SFW630-6/990	630	400		Z941H64 DN250
CJA237-W80/1× 7	391	0.315	1075	1000	SFW1000-6/1180	1000	6300	CWT/1	Z941H64 DN250
CJA237-W80/1× 7	447	0.346	1344	1000	SFW1250-6/1180	1250	6300	CWT/1	Z941H64 DN250
CJA237-W80/1× 9	209	0.380	685	750	SFW630-8/1180	630	400	CWT/1	Z941H40 DN350
CJA237-W80/1× 9	244	0.411	860	750	SFW800-8/1180	800	400	CWT/1	Z941H40 DN350
CJA237-W90/1× 5.5	468	0.211	860	1000	SFW800-6/1180	800	400	CWT/1	Z941H64 DN250
CJA237-W90/1× 5.5	540	0.230	1075	1000	SFW1000-6/1180	1000	6300	CWT/1	Z941H100 DN250

---
