Egg Shell Milling Machine Powder Making Machine

Product Description

Product Description
Egg Shell Grinding Machine

Product Application 1,The machine is made up of three parts:main machine,auxiliary machine and electric control box. It has the properties of wind selection,having no sieve or net,and an even granularity of the processed material.

2,The production process going on continuously,the machine can undertake the grinding of chemical products.food medicament,cosmetics,plastic,dyestuff, resin,cotourant,grain,etc.

3,This machine is suitable for grinding egg shell.

Model	BSP-350	BSP-450	BSP-500	BSP-750
Capacity(kg/h)	20-200	40-500	60-800	120-1800
Input granule size (mm)	<15	<15	<15	<15
Out powder size (mesh)	60-2500	60-2500	60-2500	60-2500
Crush motor power (KW)	7.5	15	22	45
classifier motor (KW)	1.1	2.2	7.5	11
Feed motor power (KW)	0.37	0.75	0.75	1.1
Blower (KW)	5.5	7.5	18.5	37
Rotary valve (KW)	0.75	0.75	0.75	1.1
Cutter rotating speed (rpm)	~6500	~5600	~4400	~3100
Classifier impeller rotating speed (rpm)	4000	4000	4000	3500
Overall size (L*W*H)(mm)	5000*1400*2800	5400*1500*2900	6600*2000*3600	9800*2700*4900
Weight(kg)	1600	1800	2300	3100

Main Features 1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4)No need screen, particle size can be changed by change speed; particle size varies from 80 to 500 mesh.
5) Around mill chamber and bearing, there is water-cooling jacket to cool the machine.
Detailed Images

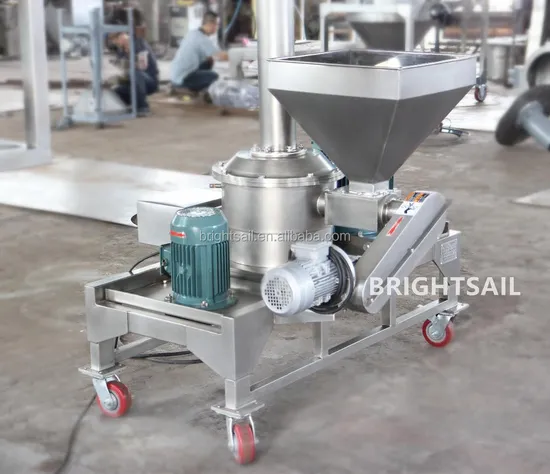

Crusher part

(1) The left motor is crush motor;
(2) the right motor is classfifier motor.
(3) It adopts a small screw feeder, make sure feed speed is even and controllable.
Cutter inside mill chamber
Work method:Material enters the mill chamber via screw conveyor where it is sheared and milled by fast-rotating blades.The powder passes the guide ring and enters the classifier chamber. As the classification wheel is in rotation,both air force and centrifugal force act on the powder. As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a greater mass,they are thrown back into the mill chamber to be ground again,while the particles whose diameters are smaller than the critical diameter enter cyclone separator and dust-collecting box.

Cyclone part

(1) Cyclone can seperate dust from powder(granules)
(2) Rotary valve make powder discharge speed even
Rotary valve is also made of stainless steel
and to clean it and dismantle is convinient.

Pulse Dust Collecting box
(1) Dust is collected inside the dust collecting box.
(2} Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily.
(3) With pulse-jet cleaning, dust can be collected very conviniently.

TO MAKE SURE BETTER QUALITY

1) We use motor from ABB/Siemens/WEG
2) We adopts electrical control parts from Delixi
3) We use bearings from
Our Service
Pre-Sales Service
* Inquiry and consulting support with 24 hours
* Sample testing support.
* View our Factory.
After-Sales Service
* Instructing how to install the machine, insutructing how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery

Packaging
Size	Depends
Weight	Depends
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	20 ft container; 40 ft container
Weight	denpends
Packaging Details	If machine is big, we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.
