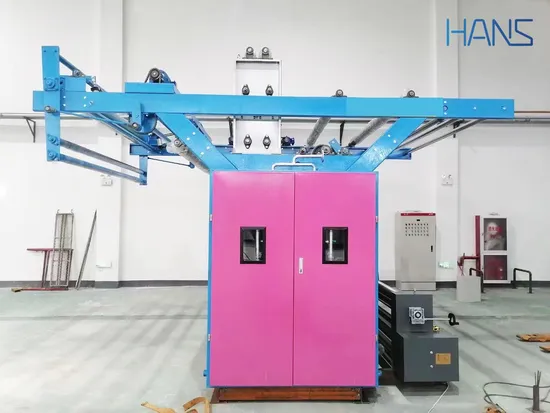

High Speed Woven Textile Type Gas Singeing Machine

Product Description

OPEN WIDTH KNITTED GAS SINGEING MACHINE
INTRODUCTION
Singeing process on the outer surface to beautify the appearance of the fabric and developing in the features of the next production process.
FEATURES
- The length and degree of flame can be adjustable according to the features of the fabrics
- The machine automatic stop when gas and air pressure are either above or below the min. or max.
- Warning and safty system for the gas leak
- Water cooling device
- Air blower with motor to produce the combustion air at constant pressure. Gas train complete install with stop valve, gas pressure regulator
pressure gauge, pressure switch, solenoid valve, gas non return valve, equipment for one burner.
- Flame intensity adjustable from 15-95 mbar, speed adjustable from 10-45m/sec. Energy adjustable from 140,000-300,000 kcal per hour
- The gas singeing machine can gurantee the highest standard of the quality in terms of hairiness removal
SPECIFICATION

MACHINE MODEL	GS-2400
MACHINE WIDTH	2400MM
MACHINE SPEED	100M/MIN
VOLTAGE	380V/50HZ
AIR PRESSURE	0-6 BAR
ELECTRICAL POWER	21KW

MACHINE CONSIST OF:
- Fabric centering unit
- Singeing unit
- Cleaning & beating unit
- Water cyclone unit
- Extingiush syste,
- Folding device
More details, please contact us.

---
