Qt5-15 Automatic Compressed Earth Brick and Block Making Machine Efficient Brick Machinery

Product Description

Product Description

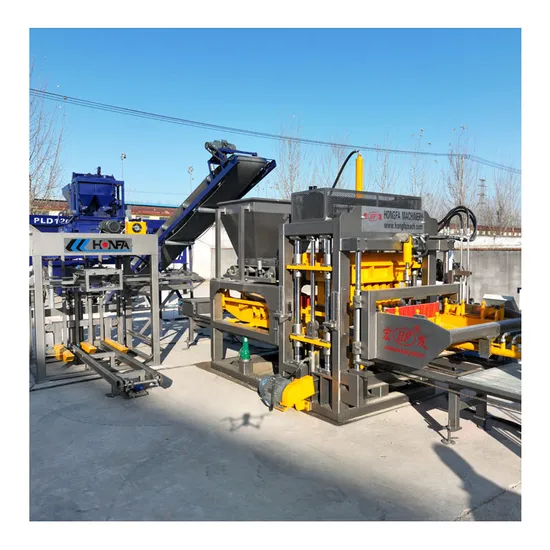

1.Advantages& Main Technical Parameter QT5---15 block machine is Hongfa's patented brick machine, best seller in Africa,perfect in manufacturing 1 meter length curbstone with competitive price and stable performance.It adopts four-lead ,channel steel stander making the equipment more firm and the mould and the squeeze head Orentation more precise ,and bed mould orientation vertical vibration and upper mould compression vibration ,which improves the efficiency greatly and manufactures blocks with more average density and higher strength.The machine adopts PLC control, and realizes automatic pallets-supplying, material-distributing, and brick-discharging.with the high production efficiency.
1).High quality reducer
2).PLC control system,precise operation,Easy to operate.
3).This block making machine is wear-resistant equipped different molds to produce various blocks.

Overall Dimension	7310*2600*2890mm
Rated Pressure	16 MPa
Main Vibration form	Platform Vibration
Vibration frequncy	2800-5100 r*min
Pallet size	1100*570 mm
Molding cycle	15 S
Exciting power	60 KN
Overall power	32 KW

Detailed Photos
1.Molding InformationThe sample size and detailed parameters of more brick types are shown in the following figure.You can choose the mold you need according to these specifications.



2.Details and other accessoies The following appliances are greatly convenient for the use of the block machine. Batching Machine
PL series concrete batching machine is a front-end automatic batching equipment used in conjunction with a mixer. It can automatically complete the batching process of sand, stone, cement and other species according to the concrete ratio requirements designed by the user. The equipment is composed of a storage hopper, a weighing system, a feeding system, an electronic control system and other parts. The feeding methods include belt conveyors.
JS500 mixer
The JS series concrete mixer is different from the JQ series. It is a twin-shaft forced mixer. It has the dual advantages of independent operation and the ability to form a concrete mixing station with supporting products such as the PL series batching machine. It can mix dry hard concrete, plastic concrete, lightweight aggregate concrete and various mortars. The whole machine design of this series of products is reasonable, the layout is novel, and it is easy to use and maintain.
Conveyor Belt 8M
The mixer mixes the raw materials and sends them to the hopper via a conveyor belt.


stacker
The block stacker is one of our new products , it can take 3-4 pallets block per time , and stacking 4-5 layers block . The
forklift cant ake 10-20 pallets block , save work time , reduce the labor cost and curing land area .Then reduce the block
manufacturing cost , is one of our best selling products
Packing&Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.



Company Profile
Shandong Hongfa Scientific Industrial & Trading Co., Ltd. founded in 1990,is located at Dazhuang Development Zone, Yi'nan County, near Yimen Mountain. We are a non-government enterprise with 1,000 staff members, near No. 227 Provincial Highway, with Ridong Expressway to the south, Jinghu Expressway to the west and Jiaoxin Railway to the east. Yihe River is 500m away from us, which is rich in ground water source, with good water quality and sufficient industrial and civil use water. we mainly produces all kinds of Cement Cuting machines,concrete mixing plant,Tile Making machines,Pipe Making machines and presses,etc.,all the construction and building material equipments manufactured by this enterprise are conformity with the standards of the state.With our persistent tenet of "to survive by quality; develop by credit", Gao Chengfa-our manager, on behalf of all staff members, welcomes your visit and cooperation.
