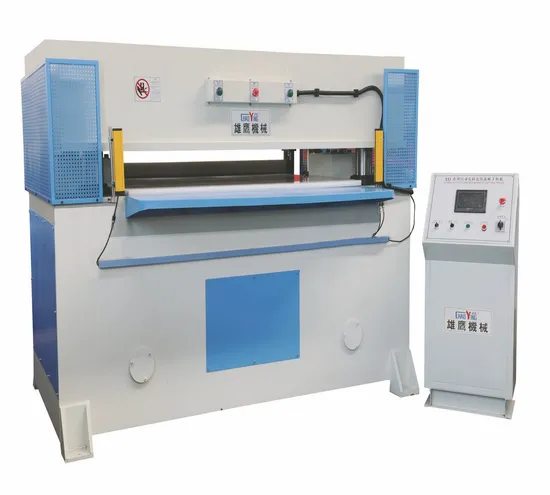

Automatic Feeding Precision Four-Column Die Clicker

Product Description

Automatic Feeding Precision Four-Column Die Clicker Usage and characteristics:
1. The machine is mainly suitable for cutting materials like leather, plastic, cloth, leather bags, toys, hats, spongy floss pieces, floor materials, soft wood pieces and materials needed cutting out.
2. Adopt double oil cylinder, four-column, precise double-crank connecting rod mechanism which can guarantee that the cutting depth at every cutting position is same.
3. With special setting mechanism, and equipped with die cutter and cutting depth setting, the travel adjustment is simple and accurate.
4. The pressing board of cutting carries out slow cutting when it contacts the die cutter which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
5. The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.
6. The operation is labor-saving and simple, with low malfunction, strong cutting power and high cutting speed.
7. Single-side or double-side automatic feeding system can be allocated to enhance the production.

Maximum cutting force	80T
Travel adjustment range	0-140mm
Range between the working tables	50-190mm
Size of the upper pressing board	1600*800mmm
Size of lower worktable	1600*820mm
Main motor power	5.5kw
Net weight	4200kgs
Gross weight	4250kgs
Dimension	2400*1500*1700mm

OUR COMPANY
Jiangsu xiongying Precision Machinery Co., Ltd. Specializes in making hydraulic cutting machine, die cutting machine, cold press machine, high speed slicing machine, multi-blade sawing machine, embossing machine and such other precision machine and general machine. Our company covers an area of 14000m2, as a large enterprise in this industry, we have powerful technical force, complete production equipment, nice environment and convenient transportation condition. Our company is located in Yancheng City Dagang Industry Zone of Jiangsu Province and this town is called as "China Shoe Machinery City", which belongs to National Spark Technology Concentration Area.
After-sales service:
Guarantee is one year, but maintenance is lifelong. Replacement is free and ex-factory. All parts have to be delivered within 12 months (carriage paid). Guarantee excludes every worn or torn parts . Replacement handwork is excluded and it will be done by the buyer. The supplier is not responsible for any rewards for, damages or last earnings met by buyer. Guarantee is not valid if the machine is used the wrong way or it is not serviced as shown in our technical handbook.
Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer's best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract. We have Q/C department to control the quality from raw material to the finished product. When the machine was finished, we will send you the inspection video or photos. Or you can come to our factory to check it by yourself. As well as we have professional experience for packaging, so you can one hundred percent sure about our quality.
Lifelong service:
After the warranty period expires, our company will offer lifelong service to all contract-honoring clients and timely provide clients with spare parts, products and technical service at the most favorable price.
File service:
After the contract is implemented, we will establish files for clients, which include sales contracts, technical parameters, production task forms, commissioning reports and acceptance forms, relevant technical drawings, etc.
FAQ
1. Are you the factory or trading company?
We are the direct factory.
2. What is your MOQ of your Product?
Normally our MOQ is 1 set.
3. Do you have any certification on your product?
We have CE approved for some of our product.
4. What is your main market for the overseas?
Our mainly exported to Iran,Indian,Italy and so on.
5. What is the warranty of your product?
We have 1 years warranty.
We can make the machine according to your specifically demand , for example the color, the motor information, the cutting force, the working table size, your brand name logo etc.

---
