Good Quality of 8 Inch Barrel for Hvof 5220 Gun

Product Description

5220 HVOF SPRAY GUN Introduction
The HVOF 5220 gun is designed for the liquid fuel supersonic thermal spraying process and is considered the benchmark and classic equipment in the supersonic thermal spraying industry. This gun model is assembled with rugged parts to ensure durable and low-frequency maintenance quality. Different barrel options, quick and reliable replacement.
Customer Value Quality Guarantee; Super cost effective; Experienced industry background; Professional technical consultation; In stock with short delivery time. Technical Parameters

Dimension(mm)	419*85*159
Weight(Kg)	5
Oxygen pressure(Bar)	15-17
Carrier gas pressure (Bar)	1.5
Kerosene pressure (Bar)	12-13
Cooling water pressure(Bar)	9-11

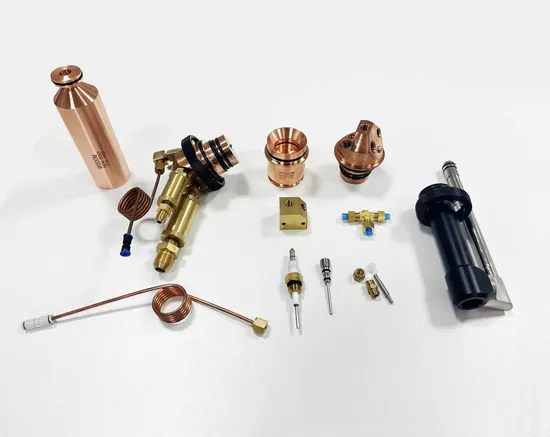

5220 gun wearing parts

OEM No.	Wearing parts Name
600460	4 inch barrel
600461	6 inch barrel
600462	8 inch barrel
450922	Intermediate connector
450924	Chamber
450925	Powder injection needle
600392	Coaxial stabilizer Assembly for 5220
450861	Coaxial stabilizer without no piping
600460	AP5000/8000 Atomizer (Kerosene needle)
450864	AP4inch barrel jacket
450863	AP6inch barrel jacket
210042	Nylon buckles for Powder injection needle
220021	TUBING, NYLON, 1/4" OD
210286	Powder feed tube tee T port
600628	Combustion chamber pressure pipe
450934	Combustion chamber pressure pipe fitting
620180	Powder Port Fitting, for 5220
620209	Interface accessories for powder feeding parts module
600408	Spark Plug Assembly, for 5220
450879	Gun Housing
600401	4inch Pressure Tube Assembly
600402	6inch Pressure Tube Assembly
450869	4inch Return pipe
450870	6inch Return pipe

The 4inch/6inch and 8inch barrels are the most common for HVOF equipment.
Application, powder type, and spray parameters determine barrel selection.
The coaxial stabilizer assembly (P/N 600392) is the most critical part of the 5220 Gun. Fuel is atomized into fine droplets by the oxygen in
the coaxial stabilizer. VULCAN's coaxial stabilizer is manufactured, assembled, and tested at our facility. The tests are performed on a calibrated AP-5000® system to internal
specifications.
The coaxial stabilizer assembly includes the main stabilizer body, adaptors,
fittings, check valves, coaxial tube assembly and spark plug assembly.
Test requirements on the coaxial stabilizer assembly include a check
and pass process at given flows on a calibrated console:
Check: Pass:
• Pop-Back • Pop-Back
• O2 Back Pressure • Pressure Valves Remain Constant
• Combustion Back Pressure • Stable Flame
• Fuel Pressure • Smooth, Consistent starts
The combustion pressure heat tube assembly (P/N 600464) is a component for the 5220 gun connecting the combustion line to the coaxial stabilizer. If extreme heat passes through the stabilizer into the combustion line, this assembly reduces the temperature, prolonging the life
of other components. VULCAN's combustion pressure heat tube assembly is manufactured to the latest revision level avail able exclusively from VULCAN.

---
