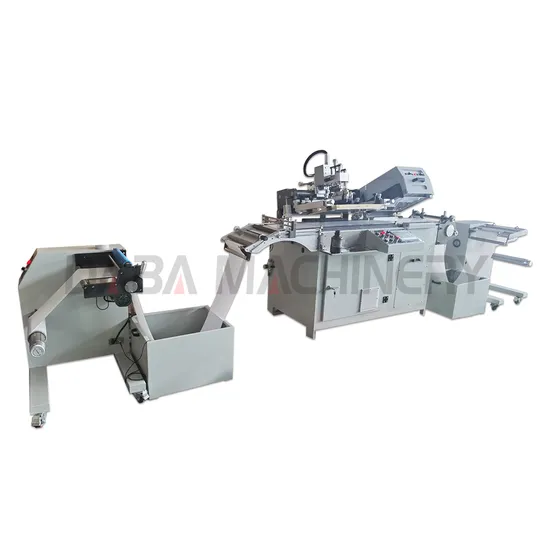

Multi Color Adhesive Label Roll to Roll Screen Printing Machine

Product Description

Machine Feature 1. It is suitable for printing products such as scratching silver and cosmetic labels, as well as overprinting and glazing of printed labels;
2. Printing materials in roll, self-adhesive paper, PVC, PET, PP, PC, PE, BOPP, and other printing materials;
3. Japan Yaskawa servo motor to ensure precision and stability;
4. English touch screen control panel;
5. The user-friendly touch screen control panel for maximum operation convenience;
6. The print head rise and fall vertically for convenient access to screen and squeegee;
7. The squeegee and flood bar printing angle and pressure is adjustable to fit different printing tasks;
8. Using Panasonic high-precision follow-up electric eye, 3 colors, suitable for different materials and colors, the secondary color registration is accurate;
9. Aluminum alloy machine frame ensures high stability and no deformation;
10. Rust proof painting has been applied on the machine to prevent it from getting rust;
11. Castor wheels are installed on machine for easy movement;
12. Unwinding and rewinding units use air shaft, easy loading & unloading of film roll and prevent slippage;
13. The pitch feeding roller is driven by servo motor, ensuring exact length film feeding as per setting at all times;
14. Feeding and winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film;
15. Precision linear motion guides are used on horizontal slide way for extremely smooth and stable printing head stroke;
16. The machine is equipped with 2 sets of UV lamp to efficiently and quickly dry the ink;
17. High-quality aluminum alloy screen frame, convenient for printing work. Specification

Term	DBSY-350	DBSY-420
Max. Substrate Width	350mm	420mm
Max. Printing Area	350*400mm	400*500mm
Max. Printing Speed	1000~9000times/hour	1000~9000times/hour
Screen Frame Size	550*700mm	550*800mm
Printing Precision	±0.20mm	±0.20mm
UV Dryer Power	7.2KW	7.2KW
Max Unwinding Dia.	700mm	700mm
Max Rewinding Dia.	700mm	700mm
Dimension(L*W*H)	4650* 1100 * 1670mm	4650 * 1200 * 1670mm
Machine Weight	About 2500KGS	About 3000KGS
